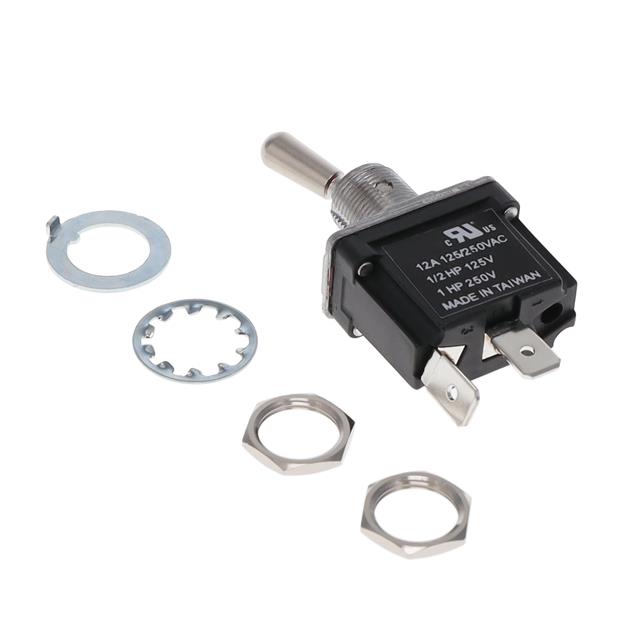

SW-T4-1A-E-TA1-01

SW-T4-1A-E-TA1-01 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists Adam Tech. Its product description is SWITCH TOGGLE SPST 12A 125V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for SW-T4-1A-E-TA1-01

• Description：SWITCH TOGGLE SPST 12A 125V
• Series：SW
• Mfr：Adam Tech
• Package：Box
• Mounting Type：Panel Mount
• Circuit：SPST
• Switch Function：On-Off
• Current Rating (Amps)：12A (AC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：-
• Actuator Type：Standard Round with Cap
• Actuator Length：16.20mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Panel Cutout Dimensions：Circular - 12.00mm Dia
• Bushing Thread：15/32-32
• Ingress Protection：IP68 - Dust Tight, Waterproof
• Features：-
• Operating Temperature：-30°C ~ 85°C

Toggle Switches datasheet and documents for SW-T4-1A-E-TA1-01
