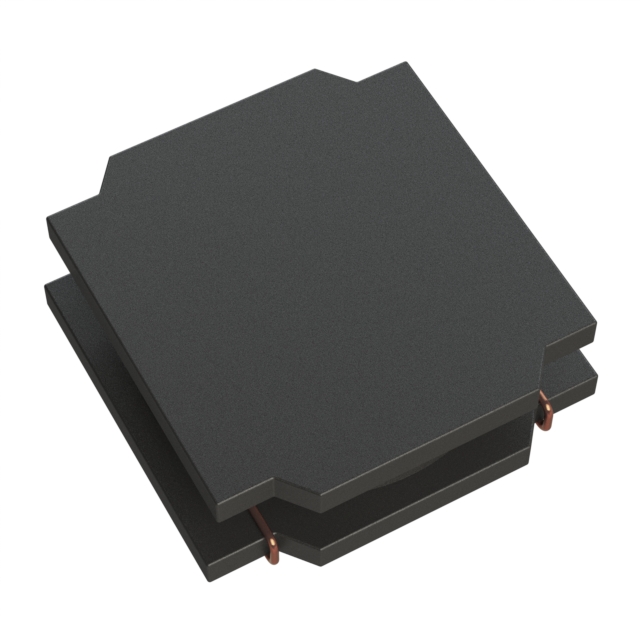

SWPA6028S151MT

$0.33

Description：FIXED IND 150UH 700MA 780MOHM SM
Series：SWPA
Mfr：Shenzhen Sunlord Electronics Co., Ltd.
Package：Tape & Reel (TR)

SKU:00581e7a289a Category: Fixed Inductors Brand: Shenzhen Sunlord Electronics Co., Ltd.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SWPA6028S151MT is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Shenzhen Sunlord Electronics Co., Ltd.. Its product description is FIXED IND 150UH 700MA 780MOHM SM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for SWPA6028S151MT

Description：FIXED IND 150UH 700MA 780MOHM SM
Series：SWPA
Mfr：Shenzhen Sunlord Electronics Co., Ltd.
Package：Tape & Reel (TR)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：150 µH
Tolerance：±20%
Current Rating (Amps)：700 mA
Current - Saturation (Isat)：500mA
Shielding：Shielded
DC Resistance (DCR)：780mOhm Max
Q @ Freq：-
Frequency - Self Resonant：1.8MHz
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max)：0.110" (2.80mm)
Features：-

Fixed Inductors datasheet and documents for SWPA6028S151MT

SWPA6028S151MT

Fixed Inductors Overview

The SWPA6028S151MT is a shielded drum core, wirewound power inductor manufactured by Shenzhen Sunlord Electronics Co., Ltd. It features an inductance of 150 µH with a tolerance of ±20%. The component has a maximum DC resistance (DCR) of 780 mΩ and a self-resonant frequency of 52 MHz. It supports a rated current of 700 mA and a saturation current (Isat) of 3.2 A. Operating temperature range is -40°C to +125°C. Dimensions are 6.0 mm x 6.0 mm x 2.8 mm.

Fixed Inductors Feature Summary

Shielded drum core construction minimizes electromagnetic interference
High saturation current capability for power applications
Surface mount package suitable for automated assembly

Fixed Inductors Applications

Power supply filtering
DC-DC converter circuits
Signal processing in communication equipment

Fixed Inductors Procurement Notes

Verify the complete part number including suffixes against official Sunlord documentation to ensure correct packaging and specifications. Confirm that the requested variant matches the required electrical parameters and mechanical dimensions before finalizing orders. Cross-reference manufacturer datasheets for any updates on lead times or compliance status.

Fixed Inductors Selection Notes

Select this component based on its 150 µH inductance and 700 mA rated current requirements. Ensure the 780 mΩ DCR fits the efficiency constraints of the circuit design. Verify that the 6.0x6.0x2.8 mm footprint aligns with the PCB layout and that the operating temperature range meets environmental conditions.

Fixed Inductors Part Context

This inductor belongs to the SWPA series of surface mount power inductors from Sunlord. These components are designed for high-current applications in portable electronics and industrial equipment. The series offers various inductance values and current ratings within standardized footprints to support diverse power management needs.
