SWPA8065S2R2MT

Fixed Inductors Overview

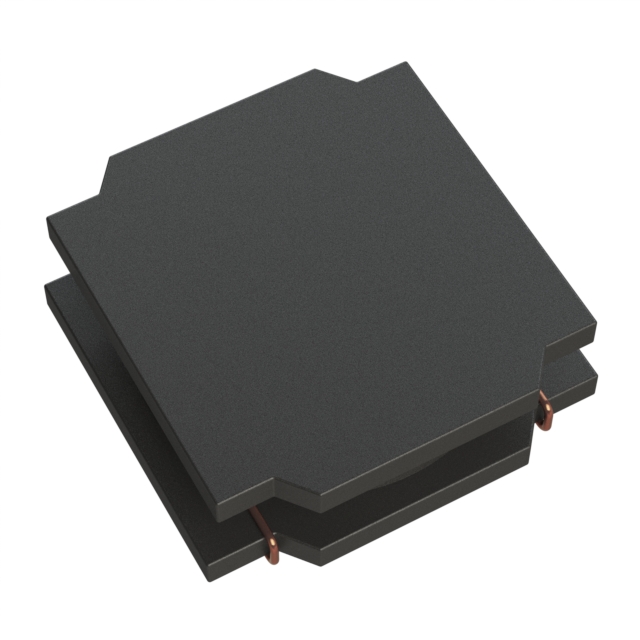

The SWPA8065S2R2MT is a shielded wirewound power inductor from the Sunlord SWPA series, manufactured by Shenzhen Sunlord Electronics Co., Ltd. It features an inductance of 2.2 µH with a tolerance of ±20%. The component has a maximum rated current of 1.65 A and a saturation current (Isat) of 3.2 A. Its DC resistance (DCR) is maximized at 59 mΩ, while the self-resonant frequency reaches 52 MHz at a test frequency of 100 kHz. Designed for surface mount installation, it utilizes a ferrite core and operates within a temperature range of -40°C to +125°C. The package dimensions are 8.00 mm x 8.00 mm x 6.50 mm.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference
• High saturation current capability for power applications
• Ferrite core design for stable performance

Fixed Inductors Applications

• Power supply circuits
• DC-DC converters
• Industrial electronics

Fixed Inductors Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure accuracy. Confirm that the requested component matches the exact electrical specifications and physical dimensions required for your design. Cross-reference the datasheet provided by Shenzhen Sunlord Electronics Co., Ltd. to validate the manufacturing source and product authenticity before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component when a compact shielded inductor with high saturation current is required. The 2.2 µH value and 3.2 A Isat make it suitable for filtering and energy storage in power conversion stages. Ensure the PCB footprint accommodates the 8.00 mm x 8.00 mm x 6.50 mm package size and that the operating environment stays within the specified -40°C to +125°C temperature range.

Fixed Inductors Part Context

This inductor belongs to the SWPA series of shielded wirewound power inductors produced by Shenzhen Sunlord Electronics Co., Ltd. The company specializes in passive components, including chip inductors and common mode chokes. This series is designed for surface mount technology applications, offering reliable performance in various electronic devices requiring efficient power management and signal filtering.

Fixed Inductors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided data.
