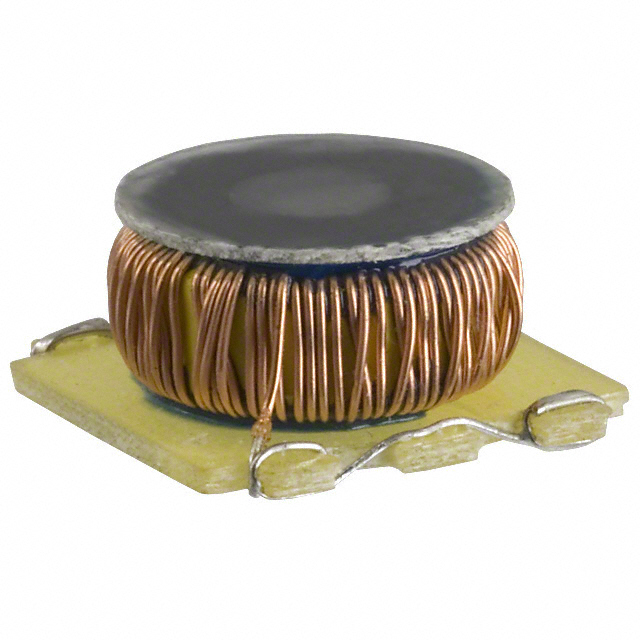

SWS-3.00-17

$2.69

Description：FIXED IND 17UH 3A 50 MOHM SMD
Series：SW
Mfr：Amgis, LLC
Package：Tape & Reel (TR)

SKU:7e91a19975c3 Category: Fixed Inductors Brand: Amgis, LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SWS-3.00-17 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Amgis, LLC. Its product description is FIXED IND 17UH 3A 50 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for SWS-3.00-17

Description：FIXED IND 17UH 3A 50 MOHM SMD
Series：SW
Mfr：Amgis, LLC
Package：Tape & Reel (TR)
Type：Toroidal
Material - Core：Iron Powder
Inductance：17 µH
Tolerance：±20%
Current Rating (Amps)：3:00 AM
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：50mOhm
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：10 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.591" L x 0.591" W (15.00mm x 15.00mm)
Height - Seated (Max)：0.325" (8.25mm)
Features：-

Fixed Inductors datasheet and documents for SWS-3.00-17

SWS-3.00-17

Fixed Inductors Overview

The SWS-3.00-17 is a fixed surface-mount inductor manufactured by Amgis, LLC. It features an inductance of 17uH and a rated current of 3A. The component has a DC resistance (DCR) of 50mOhm. It is designed for SMD applications.

Fixed Inductors Feature Summary

Fixed inductance value of 17uH
Rated current capability of 3A
Low DC resistance of 50mOhm
Surface-mount device (SMD) package

Fixed Inductors Applications

Power supply filtering
Signal processing circuits
Electronic equipment EMC suppression

Fixed Inductors Procurement Notes

Verify the obsolete status of this part number before procurement. Confirm availability from authorized distributors or secondary market suppliers. Ensure substitute components meet identical electrical specifications including inductance, current rating, and DCR. Validate manufacturer authenticity to avoid counterfeit parts.

Fixed Inductors Selection Notes

Select this component for applications requiring a 17uH inductance with a 3A current rating. Consider the 50mOhm DCR for efficiency requirements. Verify physical dimensions and mounting compatibility. Check for RoHS compliance if required by project standards.

Fixed Inductors Part Context

This component belongs to the SWS series of fixed inductors from Amgis, LLC. The series offers various inductance values and current ratings. The SWS-3.00-17 specifically targets mid-range power applications requiring compact SMD solutions.
