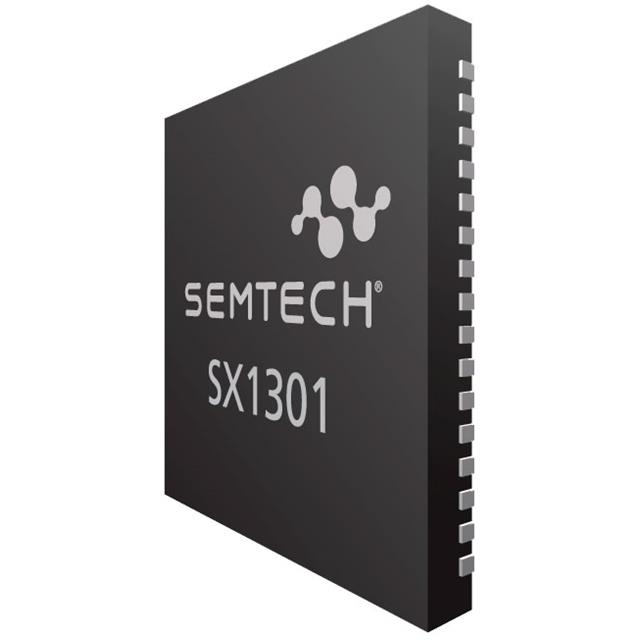

SX1301IMLTRT

Overview

The SX1301IMLTRT is a digital baseband chip designed for LoRaWAN macro gateways. It integrates the LoRa concentrator IP to provide massive digital signal processing capabilities across global ISM bands. The device emulates 49 parallel LoRa demodulators and one (G)FSK demodulator, supporting dynamic data-rate adaptation. It features dual digital TX/RX radio front-end interfaces and operates within a temperature range of -40°C to +85°C.

Feature Summary

• Integrates LoRa concentrator IP for massive gateway capabilities
• Emulates 49x LoRa and 1x (G)FSK demodulators simultaneously
• Supports true antenna diversity or simultaneous dual-band operation
• Features dynamic data-rate adaptation for optimized network performance

Applications

• LoRaWAN network macro gateways
• Outdoor IoT connectivity infrastructure
• Multi-channel RF signal processing systems

Procurement Notes

Verify the specific ordering suffix against official Semtech documentation to ensure correct package and tape specifications. Confirm RoHS compliance status and humidity sensitivity handling requirements prior to assembly. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current production status.

Selection Notes

Select this component for applications requiring high-density channel demodulation in outdoor gateway environments. Ensure the design supports the required SPI interface and dual radio front-end connections. Evaluate thermal management needs given the operational temperature range and digital processing load inherent to the baseband architecture.

Part Context

This part belongs to the Semtech LoRa Core family, specifically engineered for digital baseband processing in wireless networks. It serves as the central processing unit for LoRa concentrators, enabling scalable IoT deployments by managing multiple concurrent signals efficiently without external baseband controllers.

Replacement Considerations

The SX1302IMLTRT is a documented successor in the LoRa Gateway Baseband Transceiver series. Verify pin compatibility and software migration requirements when transitioning from the SX1301 to newer generation baseband chips.
