SX1B16.000F0910F30

Crystals Overview

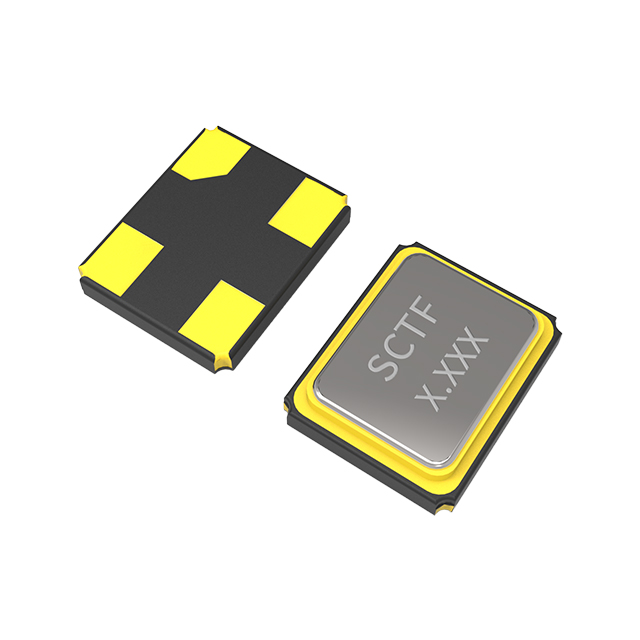

The SX1B16.000F0910F30 is a surface-mount passive crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a fundamental frequency of 16.000 MHz with a load capacitance of 9 pF. The component exhibits a frequency tolerance of ±10 ppm and an equivalent series resistance (ESR) of 30 ohms. Designed for reliability, it functions within a temperature range of -40°C to +85°C. The package is a compact 4-SMD, no-lead configuration.

Crystals Feature Summary

• AT-cut ceramic construction for high stability
• Ultra-small and ultra-thin surface-mount design
• High precision frequency control

Crystals Applications

• Industrial applications
• Portable devices
• Short-range wireless modules
• Computers and modems

Crystals Procurement Notes

Verify the specific load capacitance requirement against the target circuit design, as this component utilizes a 9 pF load capacitance which differs from common 8 pF variants. Confirm that the ESR specification aligns with the oscillator circuit's drive level constraints to ensure stable operation. Ensure the operating temperature range meets the environmental requirements of the end application.

Crystals Selection Notes

Select this component when a 16 MHz reference signal is required in space-constrained designs. The choice between 8 pF and 9 pF load capacitance must match the host circuit's capacitive loading exactly to maintain the specified ±10 ppm accuracy. Consider the thermal environment, as the -40°C to +85°C range suits general commercial and industrial uses but may require verification for extreme conditions.

Crystals Part Context

This part belongs to the SX1B series of AT-cut ceramic surface-mount crystals from SCTF. These components are engineered for applications demanding precise timing in compact form factors. The series typically includes variants with different load capacitances and frequencies, allowing designers to select the exact electrical parameters needed for their specific clock generation circuits.

Crystals Replacement Considerations

Public confirmed substitute part numbers: None available.
