SX1M12.288M10F30TNN

Oscillators Overview

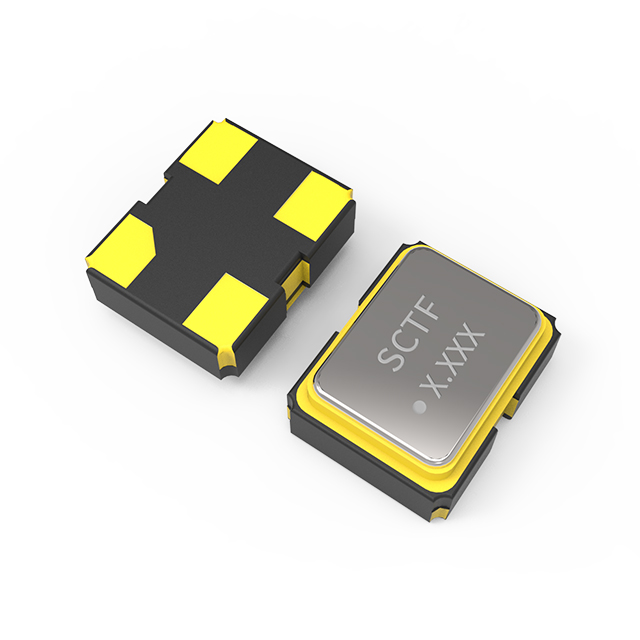

The SX1M12.288M10F30TNN is a standard active crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a nominal frequency of 12.288 MHz with a CMOS output type. The device supports a supply voltage range of 1.62V to 3.63V and features enable/disable functionality. Initial frequency tolerance is specified at ±10 ppm, while total frequency stability is rated at ±30 ppm. The component is housed in a 4-SMD, no-lead package with dimensions of 2.0mm x 1.6mm (SMD2016-4P). It draws a supply current of 10 mA and functions within an operating temperature range of -40°C to +85°C.

Oscillators Feature Summary

• CMOS output interface for digital logic compatibility
• Integrated enable and disable control pin
• Wide voltage operation from 1.62V to 3.63V
• Compact SMD2016-4P surface mount package

Oscillators Applications

• Clock signal generation for microcontrollers
• Timing reference for communication interfaces
• Embedded system clock sources
• Consumer electronics timing circuits

Oscillators Procurement Notes

Verify the specific frequency tolerance and stability requirements against the datasheet specifications before procurement. Ensure the selected variant matches the required operating temperature range and supply voltage constraints. Confirm the package footprint corresponds to the SMD2016-4P dimensions for proper PCB layout integration. Cross-reference the manufacturer part number to avoid confusion with similar models.

Oscillators Selection Notes

Select this component when a precise 12.288 MHz clock source is required for low-power applications. Consider the wide voltage range if the system operates across varying power conditions. The CMOS output is suitable for direct interfacing with digital inputs without additional buffering. Evaluate the thermal performance to ensure reliability within the specified -40°C to +85°C environment.

Oscillators Part Context

This oscillator belongs to the SX1M series of surface-mount crystal oscillators from Shenzhen SCTF Electronics. These components are designed to provide stable clock signals for various electronic systems. The series typically offers multiple frequency options and package sizes to accommodate different design constraints. The SX1M12.288M10F30TNN specifically targets applications requiring high accuracy and compact form factors.

Oscillators Replacement Considerations

Direct substitutes must match the 12.288 MHz frequency, CMOS output, and SMD2016-4P package. Verify that alternative components support the same 1.62V-3.63V voltage range and enable/disable functionality. Check for equivalent frequency stability and initial tolerance ratings to maintain system timing integrity.
