SX2B16.000F1010F30

Crystals Overview

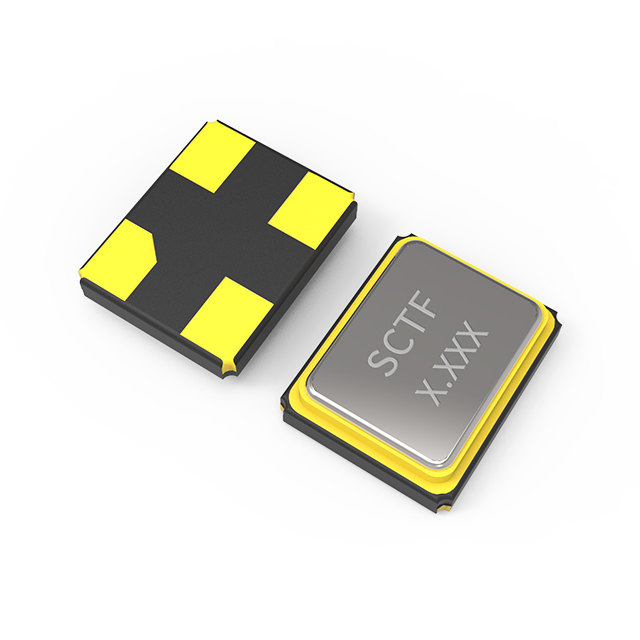

The SX2B16.000F1010F30 is a surface-mount crystal resonator manufactured by Shenzhen SCTF Electronics. It operates at a fundamental frequency of 16 MHz with a normal temperature frequency tolerance of ±10 ppm and a total frequency stability of ±30 ppm. The component features a built-in load capacitance of 10 pF and an equivalent series resistance (ESR) of 80 Ohms. It utilizes a 4-SMD, no-lead package configuration suitable for automated assembly processes.

Crystals Feature Summary

• High precision frequency control with ±10 ppm initial tolerance
• Integrated 10 pF load capacitance simplifies circuit design
• Robust ±30 ppm frequency stability across operating conditions
• Compact surface-mount form factor for space-constrained applications

Crystals Applications

• Microcontroller clock sources
• Communication transceivers
• Portable electronic devices
• Industrial control systems

Crystals Procurement Notes

Verify the specific ESR value against official datasheets, as some references indicate 60 Ohms while others specify 80 Ohms for this series. Confirm package dimensions match the target PCB footprint. Ensure supply chain partners provide traceable documentation to guarantee component authenticity and compliance with RoHS standards.

Crystals Selection Notes

Select this component when a 16 MHz reference signal is required with tight initial tolerance. The 10 pF load capacitance matches standard microcontroller input requirements. Consider the 80 Ohm ESR for oscillator circuit stability. Evaluate thermal performance if operation exceeds standard commercial temperature ranges.

Crystals Part Context

This part belongs to the SX2B series of SMD crystals from Shenzhen SCTF Electronics. The series offers various frequencies and load capacitances. The model number indicates a 16 MHz frequency, 10 pF load, and specific packaging characteristics. It serves as a passive timing element in digital circuits requiring precise clock generation.

Crystals Replacement Considerations

Direct substitutes include the SX2B16.000F0810F30 if 8 pF load capacitance is acceptable. Other compatible parts within the same series may offer different ESR values or package sizes. Verify electrical parameters and mechanical dimensions before substitution.
