SX2M11.0592B20F30TNN

Oscillators Overview

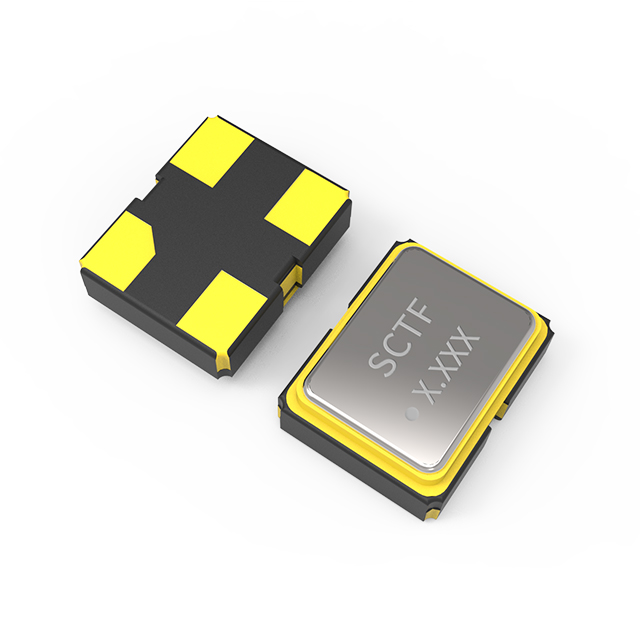

The SX2M11.0592B20F30TNN is a CMOS crystal oscillator manufactured by Shenzhen SCTF Electronics, operating at a frequency of 11.0592 MHz. It functions as a standard XO with enable and disable capabilities, powered by a 3.3V supply voltage. The component utilizes a 4-SMD, no-lead surface mount package for integration into electronic circuits.

Oscillators Feature Summary

• CMOS output signal generation
• Enable and disable control functionality
• Surface mount packaging

Oscillators Applications

• General electronic circuit timing
• Embedded system clock sources
• Digital logic interface synchronization

Oscillators Procurement Notes

Verify the manufacturer designation matches Shenzhen SCTF Electronics to ensure authenticity. Confirm the specific model suffix aligns with required electrical parameters such as voltage and frequency stability before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a 11.0592 MHz CMOS clock source is required in a compact surface mount form factor. Ensure the design supports the specified 3.3V supply voltage and accommodates the enable/disable control features provided by the oscillator.

Oscillators Part Context

This part belongs to the series of surface mount crystal oscillators produced by Shenzhen SCTF Electronics. These components are designed to provide stable clock signals for digital systems using standard CMOS output levels and compact SMD footprints.

Oscillators Replacement Considerations

The SX2M11.2896B20F30TNN is listed as a related product from the same manufacturer, though it operates at a different frequency.
