SX2M11.0592D20F30TNN

Oscillators Overview

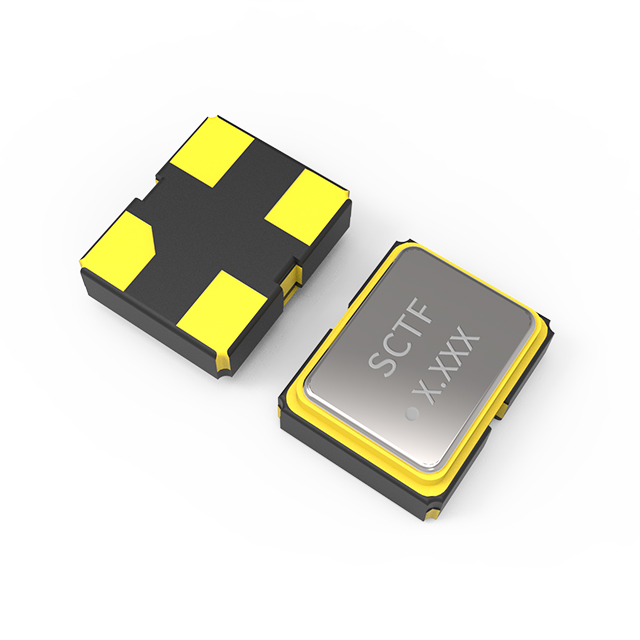

The SX2M11.0592D20F30TNN is a 11.0592 MHz crystal oscillator manufactured by Shenzhen SCTF Electronics. It utilizes CMOS output technology and operates with a supply voltage of 1.8V, featuring an enable/disable control function. The component is housed in a 4-SMD, no-lead package designed for surface-mount applications.

Oscillators Feature Summary

• CMOS output signal generation
• 1.8V supply voltage operation
• Enable/disable control capability

Oscillators Applications

• General electronic circuit timing
• Digital system clock sources

Oscillators Procurement Notes

Verify the specific manufacturer part number against official distributor catalogs to confirm availability and authenticity. Ensure that the 1.8V operating voltage and CMOS output specifications align with the target circuit design requirements before finalizing procurement.

Oscillators Selection Notes

Select this component based on the required 11.0592 MHz frequency and 1.8V supply constraint. Confirm compatibility with the 4-SMD no-lead footprint and ensure the enable/disable feature meets the power management needs of the application.

Oscillators Part Context

This model belongs to the series of standard crystal oscillators produced by Shenzhen SCTF Electronics. It serves as a precise timing reference for digital circuits requiring stable clock signals at the specified frequency.

Oscillators Replacement Considerations

Consult official distributor databases for direct substitutes from Shenzhen SCTF or other manufacturers offering identical 11.0592 MHz CMOS oscillators in 4-SMD packages with 1.8V operation.
