SX2M12.500D10F20TNN

Oscillators Overview

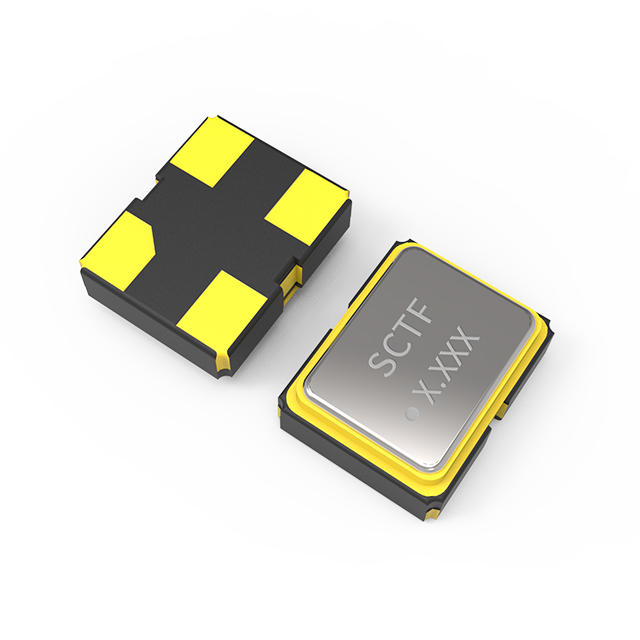

The SX2M12.500D10F20TNN is a CMOS crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a frequency of 12.5 MHz and utilizes a standard XO configuration. The device supports a supply voltage of 1.8V and features an enable/disable control function. It is housed in a compact 4-SMD, no-lead package designed for surface-mount applications.

Oscillators Feature Summary

• CMOS output technology
• Enable/Disable control capability
• Surface-mount construction

Oscillators Applications

• General electronic circuits requiring precise timing
• Digital systems utilizing standard clock signals
• Embedded devices with low-voltage power constraints

Oscillators Procurement Notes

Verify the manufacturer designation as Shenzhen SCTF Electronics against official component documentation. Confirm that the 1.8V operating voltage and 12.5 MHz frequency align with specific circuit requirements before procurement. Ensure the 4-SMD package matches the target PCB footprint.

Oscillators Selection Notes

Select this component when a standard CMOS oscillator with enable functionality is required. The 1.8V supply voltage dictates compatibility with low-power logic families. Verify that the 12.5 MHz frequency meets the system clock specifications and that the SMD form factor fits the assembly process.

Oscillators Part Context

This model belongs to the series of surface-mount crystal oscillators produced by Shenzhen SCTF Electronics. It represents a standard fixed-frequency solution intended for integration into various electronic assemblies where stable clock generation is necessary for digital operation.
