SX3B11.0592F1010F30

Crystals Overview

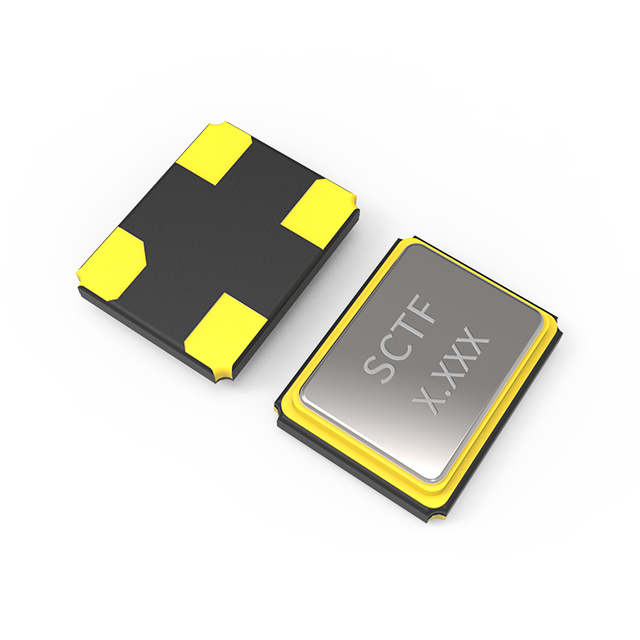

The SX3B11.0592F1010F30 is a surface-mount crystal resonator manufactured by Shenzhen SCTF Electronics. It operates at a fundamental frequency of 11.0592 MHz with a frequency tolerance of ±10 ppm. The component features a load capacitance of 10 pF and an equivalent series resistance (ESR) of 100 Ohms. It is housed in a compact 4-SMD, no-lead package with dimensions of 3.2 x 2.5 mm. Designed for stability, it utilizes AT-cut quartz technology suitable for industrial and wireless communication applications.

Crystals Feature Summary

• AT-cut quartz structure for high precision and temperature stability
• Ultra-small ceramic surface-mount package with metal cover
• Optimized for low power consumption and high reliability

Crystals Applications

• Wireless communication modules
• Industrial control systems
• Microcontroller clock sources

Crystals Procurement Notes

Verify the specific ordering suffix to ensure the correct load capacitance and tolerance match your circuit design requirements. Confirm the package dimensions and pin configuration against your PCB footprint. Check the manufacturer's datasheet for storage conditions and soldering profiles to maintain component integrity during assembly.

Crystals Selection Notes

Select this component when a stable 11.0592 MHz reference is required for digital circuits. Ensure the load capacitance matches the oscillator circuit design to achieve the specified frequency accuracy. Consider the ESR value for compatibility with the driving circuit's gain requirements. Verify the operating temperature range meets the environmental conditions of the end application.

Crystals Part Context

This crystal resonator belongs to the SX3B series of surface-mount devices from Shenzhen SCTF Electronics. These components are engineered for modern electronics requiring small form factors and reliable timing signals. The series supports various frequencies and packages, catering to diverse consumer and industrial electronic needs.

Crystals Replacement Considerations

Direct substitutes include models with identical electrical parameters and package dimensions, such as the SX3B11.0592F2010F30, provided the load capacitance and tolerance specifications align with the original design requirements.
