SX3B11.0592F2010F30

Crystals Overview

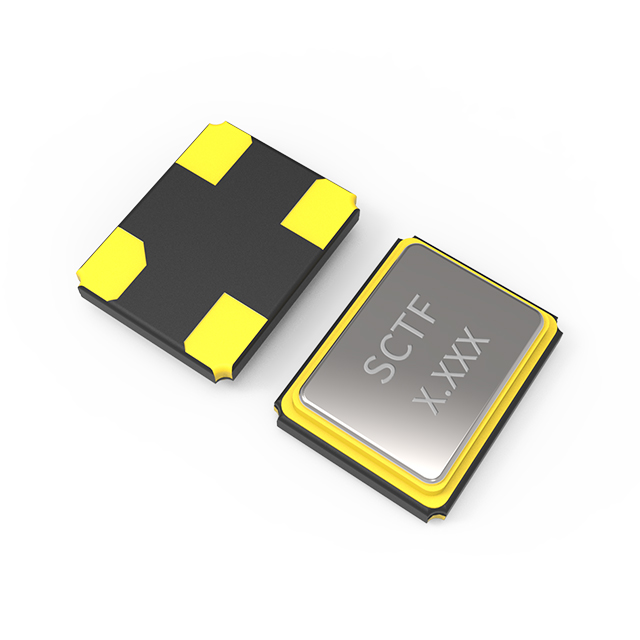

The SX3B11.0592F2010F30 is a surface-mount AT-cut crystal resonator manufactured by Shenzhen SCTF Electronics. It operates at a fundamental frequency of 11.0592 MHz with a load capacitance of 20 pF and a maximum series resistance of 60 Ohms. The device is housed in a compact 3.2 x 2.5 mm SMD package, designed for space-constrained circuitry. This component provides stable frequency generation suitable for digital clock signals and communication interfaces requiring precise timing references.

Crystals Feature Summary

• AT-cut crystal structure for high stability
• Compact surface-mount form factor
• Metal cap construction for shielding

Crystals Applications

• Industrial control systems
• Wireless communication modules
• Digital clock signal generation

Crystals Procurement Notes

Verify the manufacturer designation as Shenzhen SCTF Electronics against official component markings. Confirm the physical dimensions match the specified 3.2 x 2.5 mm package outline. Ensure the electrical parameters align with the required 11.0592 MHz frequency, 20 pF load capacitance, and 60 Ohm maximum series resistance for the specific application circuit.

Crystals Selection Notes

Select this component when a standard 11.0592 MHz reference is required in a small footprint. The 20 pF load capacitance must match the oscillator circuit design. Consider the 60 Ohm series resistance limit for drive level sensitivity. The SMD package facilitates automated assembly processes compared to through-hole alternatives.

Crystals Part Context

This part belongs to the SX3B series of surface-mount crystal resonators. These components are engineered for general-purpose timing applications where size reduction is critical. The series typically offers various frequency options within a standardized mechanical envelope, allowing for consistent board layout across different product variants.

Crystals Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
