SX3B12.000F0810G30

Crystals Overview

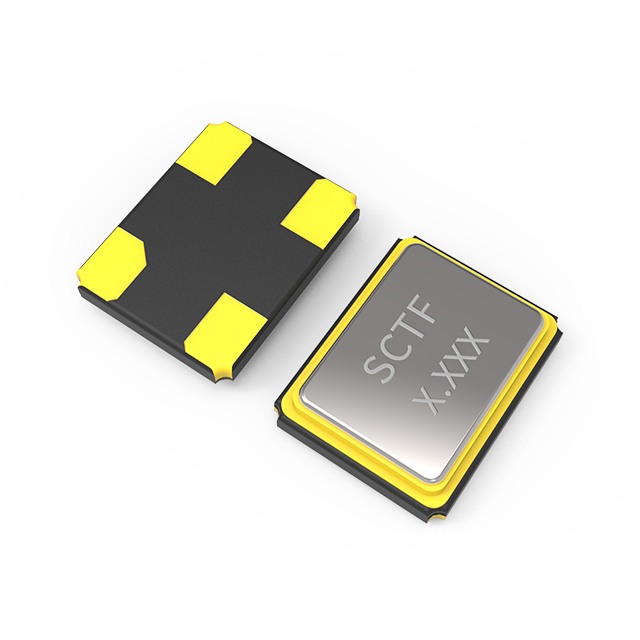

The SX3B12.000F0810G30 is a surface-mount crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a fundamental frequency of 12 MHz with a frequency tolerance of ±10 ppm. The component features a load capacitance of 8 pF and an equivalent series resistance (ESR) of 100 Ohms. It utilizes a 4-SMD, No Lead package configuration designed for automated surface-mount assembly processes.

Crystals Feature Summary

• Provides stable frequency generation suitable for precision timing applications
• Designed for direct surface-mount integration into printed circuit boards
• Operates within standard industrial temperature ranges

Crystals Applications

• Short-range wireless modules
• Portable electronic devices
• Computer systems
• Modems

Crystals Procurement Notes

Verify the specific ordering suffix against the manufacturer's official specification sheet to ensure compatibility with required load capacitance and tolerance levels. Confirm that the 4-SMD No Lead package dimensions align with the target PCB footprint design. Cross-reference the frequency stability requirements with the ±10 ppm specification to validate suitability for the intended circuit application.

Crystals Selection Notes

Select this component when a 12 MHz reference signal is required with high stability in a compact surface-mount form factor. Ensure the circuit design accommodates the specified 8 pF load capacitance to maintain accurate frequency performance. Verify that the 100 Ohm ESR value is compatible with the oscillator circuit's drive level constraints to prevent over-driving or frequency pulling issues during operation.

Crystals Part Context

This part belongs to the SX3B series of surface-mount crystals produced by Shenzhen SCTF Electronics. The series offers various frequency options and package configurations for general-purpose timing needs. The specific model denotes a 12 MHz unit with defined electrical parameters tailored for consumer and industrial electronics requiring reliable clock signals.

Crystals Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
