SX3B12.000F1010F30

Crystals Overview

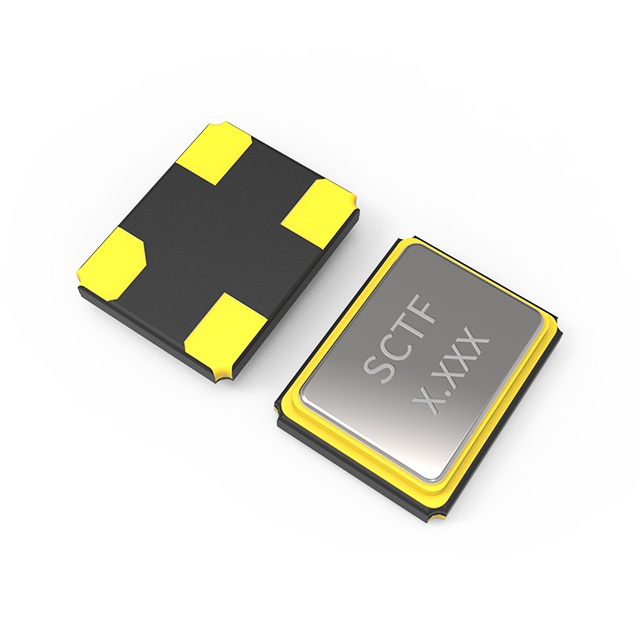

The SX3B12.000F1010F30 is a 12 MHz AT-cut quartz crystal resonator manufactured by Shenzhen SCTF Electronics. It features a ±10 ppm frequency tolerance and operates within a standard commercial temperature range. The component utilizes a 4-SMD, No Lead package configuration with a load capacitance of 10 pF and an equivalent series resistance (ESR) of 100 Ohms. This surface-mount device provides stable frequency generation for electronic circuits requiring precise timing references.

Crystals Feature Summary

• AT-cut crystal structure ensuring high stability
• Ultra-small ceramic surface mount package with metal cover
• Designed for industrial-grade vibration and shock resistance

Crystals Applications

• Robotics control systems
• Servo drive units
• Outdoor camera modules

Crystals Procurement Notes

Verify the specific manufacturer designation Shenzhen SCTF Electronics against the physical marking on the component to ensure authenticity. Confirm that the 4-SMD No Lead package matches the required PCB footprint. Cross-reference the 100 Ohm ESR specification with the target circuit design requirements before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 12 MHz reference signal is required in space-constrained designs utilizing surface-mount technology. The 100 Ohm ESR value must align with the oscillator circuit's loading requirements. Ensure the operating environment does not exceed the specified temperature limits for the standard commercial grade variant.

Crystals Part Context

This part belongs to the SX3B series of ultra-small ceramic surface-mount crystals from Shenzhen SCTF Electronics. The series is characterized by its compact form factor and robust construction suitable for demanding applications. The specific model suffix indicates the electrical parameters including frequency, tolerance, load capacitance, and package type.

Crystals Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
