SX3B13.560F1210F30

Crystals Overview

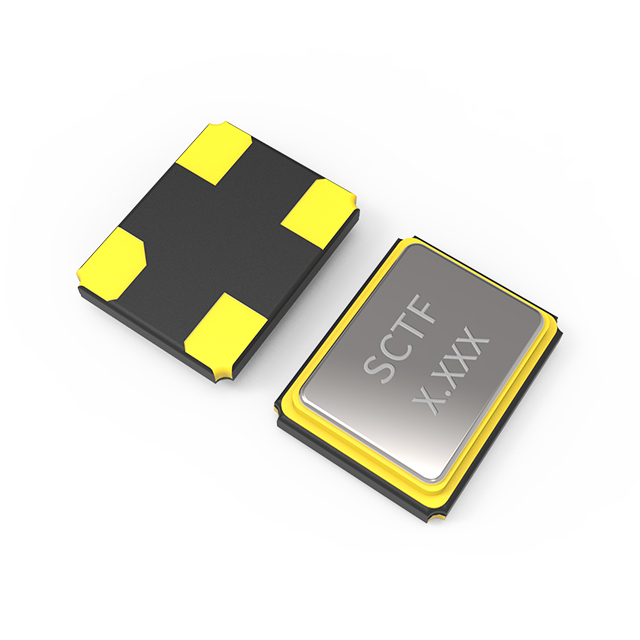

The SX3B13.560F1210F30 is a surface-mount crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a nominal frequency of 13.56 MHz with a frequency tolerance of ±10ppm. The component features a load capacitance of 12pF and an equivalent series resistance (ESR) of 100 Ohms. It utilizes a 4-SMD, No Lead package configuration designed for automated surface-mount assembly processes.

Crystals Feature Summary

• Provides stable oscillation at the standard RFID frequency of 13.56 MHz
• Designed for compact surface-mount integration in electronic circuits
• Ensures precise timing performance through tight frequency tolerance specifications

Crystals Applications

• Radio Frequency Identification (RFID) tag systems
• Short-range wireless communication modules
• Portable consumer electronic devices requiring precise clock signals
• Industrial control equipment utilizing 13.56 MHz resonance

Crystals Procurement Notes

Verify that the specific order matches the exact model number SX3B13.560F1210F30 to ensure correct load capacitance and ESR values. Confirm the manufacturer is Shenzhen SCTF Electronics as specified. Check the physical package type against the 4-SMD, No Lead requirement to guarantee compatibility with existing PCB footprints and reflow soldering profiles.

Crystals Selection Notes

Select this component when a 13.56 MHz reference is required for RFID or NFC applications. Ensure the system design accommodates the 12pF load capacitance and 100 Ohm ESR parameters. Consider the ±10ppm tolerance relative to the application's frequency stability requirements. Verify that the surface-mount form factor aligns with the manufacturing capabilities and space constraints of the target device.

Crystals Part Context

This part belongs to the family of surface-mount crystals produced by Shenzhen SCTF Electronics. These components are engineered to provide reliable frequency references for modern electronics. The 13.56 MHz frequency is widely recognized for use in contactless smart card and identification technologies, making these crystals essential for compatible hardware designs.

Crystals Replacement Considerations

The datasheet lists SX3B13.560F1610F30 as a related variant within the same product line. This alternative shares the same frequency but differs in load capacitance, requiring circuit evaluation before substitution.
