SX3DF100.000B20F30HNN

Oscillators Overview

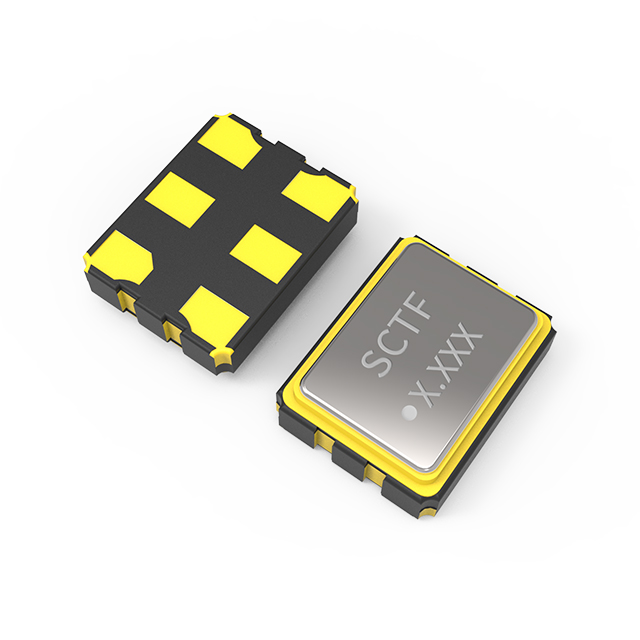

The SX3DF100.000B20F30HNN is a 100 MHz HCSL oscillator manufactured by Shenzhen SCTF Electronics. It operates on a 3.3V supply with a ±20 ppm frequency stability and supports an enable/disable function. The device features a 6-SMD, no-lead package and functions within a temperature range of -40°C to +85°C.

Oscillators Feature Summary

• Delivers high-frequency clock signals using HCSL output mode for reliable signal integrity.
• Incorporates an enable/disable control feature to manage power consumption during idle states.
• Designed for surface-mount integration with a compact 6-SMD no-lead form factor.

Oscillators Applications

• High-speed digital communication interfaces requiring precise timing references.
• Data acquisition systems needing stable clock sources for synchronization.
• Industrial equipment operating in extended temperature environments.

Oscillators Procurement Notes

Verify the specific suffix 'HNN' against official datasheets to confirm HCSL output compatibility. Ensure the selected variant matches the required 3.3V logic levels and enable pin functionality. Cross-reference the 6-SMD package dimensions with PCB footprint libraries to prevent assembly errors. Confirm that the -40°C to +85°C industrial grade meets the operational thermal requirements of the target application environment.

Oscillators Selection Notes

Select this component when HCSL signaling is required for noise immunity in dense layouts. Consider the enable/disable capability if system-level power management is a priority. Evaluate the ±20 ppm stability against jitter-sensitive receiver specifications. Compare the SMD package size against available board space constraints relative to other oscillator families.

Oscillators Part Context

This model belongs to the SX3DF series of surface-mount oscillators from Shenzhen SCTF Electronics. The series provides various output formats including LVDS and LVPECL. The HCSL variant specifically targets applications demanding low voltage swing and high-speed performance. It serves as a timing reference solution for modern electronic systems requiring compact footprints.

Oscillators Replacement Considerations

SX3DF100.000B20F30PNN offers identical frequency and package but utilizes LVPECL output instead of HCSL. SX5DF100.000B20F30DNN provides LVDS output with similar electrical characteristics. Verify output compatibility before substitution due to differing voltage swing requirements.
