SX3M1.024B10F20TNN

Oscillators Overview

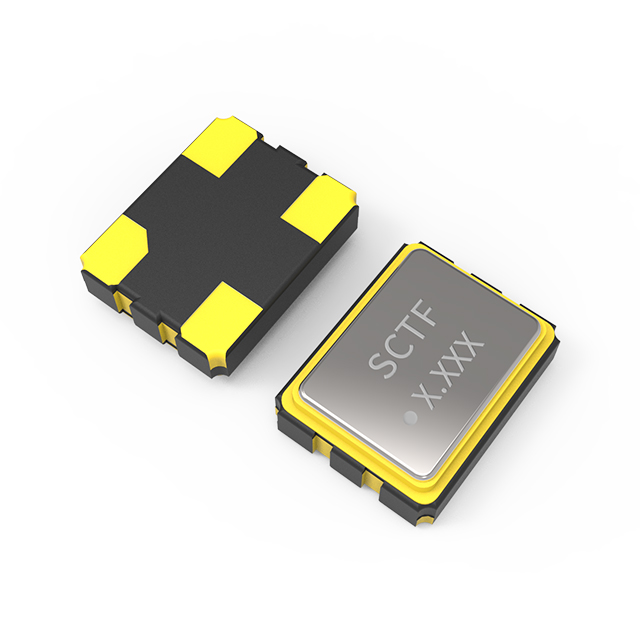

The SX3M1.024B10F20TNN is a standard CMOS crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a nominal frequency of 1.024 MHz and utilizes a 3.3V supply voltage. The device features an enable/disable control function for power management. It is housed in a compact 4-SMD, no-lead package designed for surface-mount assembly.

Oscillators Feature Summary

• CMOS output signal generation
• Enable/disable control functionality
• Surface-mount SMD package

Oscillators Applications

• General clock signal generation
• Embedded system timing references
• Digital circuit synchronization

Oscillators Procurement Notes

Verify the manufacturer designation as Shenzhen SCTF Electronics against official component documentation. Confirm the specific operating voltage of 3.3V and the 1.024 MHz frequency requirement matches the target design specifications. Ensure the 4-SMD no-lead package footprint aligns with the PCB layout constraints before procurement.

Oscillators Selection Notes

Select this component when a low-frequency 1.024 MHz reference is required with CMOS logic compatibility. The integrated enable/disable feature supports systems requiring active power management. Verify that the 3.3V supply rail is stable and compatible with the oscillator's input requirements to ensure reliable operation.

Oscillators Part Context

This model belongs to the series of surface-mount crystal oscillators produced by Shenzhen SCTF Electronics. It provides a standardized clock source for digital applications. The 4-SMD form factor allows for automated placement in high-volume manufacturing environments.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
