SX3M10.000A20F30TNN

Oscillators Overview

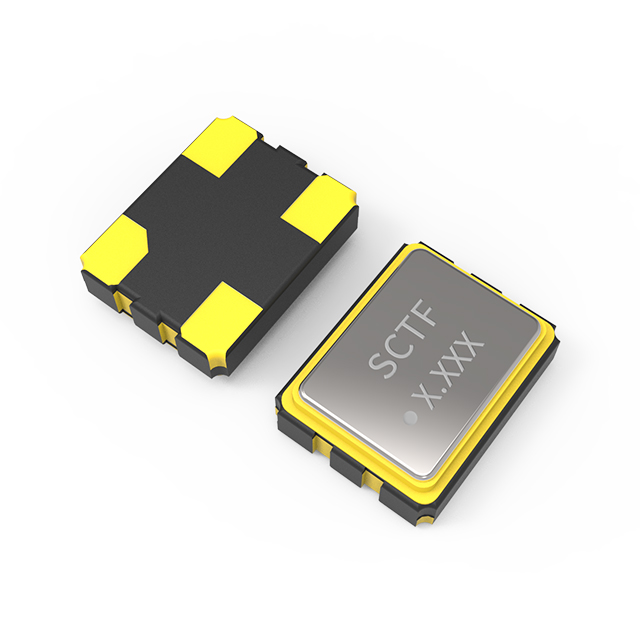

The SX3M10.000A20F30TNN is a standard crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a frequency of 10 MHz and utilizes CMOS output logic. The device supports an enable/disable control function for power management. It is designed to operate within a supply voltage range of 1.62 V to 3.63 V. The component features a 4-SMD, no-lead surface-mount package. It is rated for operation in temperatures ranging from -40°C to +85°C.

Oscillators Feature Summary

• CMOS output signal generation
• Active enable/disable control capability
• Wide operating voltage support

Oscillators Applications

• Industrial equipment clocking
• Telecommunications systems
• IoT devices

Oscillators Procurement Notes

Verify the specific suffix 'A' against official documentation to confirm exact electrical tolerances and pinout configuration. Ensure the selected variant matches the required supply voltage and temperature range specifications for the target application environment before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a 10 MHz CMOS clock source with active control is required. Consider the 4-SMD package size for board space constraints. Verify compatibility with the system's supply voltage rails and thermal requirements across the specified industrial temperature range.

Oscillators Part Context

This part belongs to the SX3M series of standard crystal oscillators from Shenzhen SCTF Electronics. The series provides frequency control solutions for various electronic applications. The model number indicates a 10 MHz frequency with specific package and tolerance characteristics defined by the manufacturer.

Oscillators Replacement Considerations

Cross-reference with other SCTF models in the SX3M series for potential substitutes. Verify that alternative parts match the 10 MHz frequency, CMOS output type, and 4-SMD package dimensions. Confirm identical voltage and temperature ratings before substitution.
