SX5M11.0592M20F30TNN

Oscillators Overview

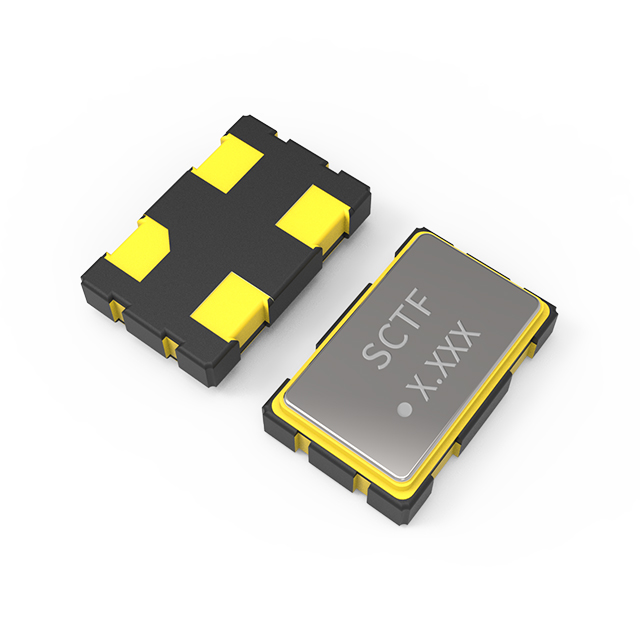

The SX5M11.0592M20F30TNN is a standard CMOS oscillator manufactured by Shenzhen SCTF Electronics. It operates at a nominal frequency of 11.0592 MHz with a full temperature range stability of ±30 ppm. The device supports a supply voltage range of 1.62V to 3.63V and features an enable/disable control function. It is housed in a compact 4-SMD, no-lead package and draws a maximum supply current of 10mA. The operating temperature range extends from -40°C to +85°C.

Oscillators Feature Summary

• CMOS output signal type for digital logic compatibility
• Enable and disable control pin for power management
• Wide operating temperature range suitable for industrial environments

Oscillators Applications

• Digital clock generation in microcontroller systems
• Timing reference for communication interfaces
• Synchronization circuits in embedded devices

Oscillators Procurement Notes

Verify the specific suffix codes against official datasheets to ensure correct frequency tolerance and temperature range specifications. Confirm package dimensions and pinout configurations match the target PCB footprint. Request manufacturer certification or test reports to validate performance under extreme environmental conditions prior to mass production integration.

Oscillators Selection Notes

Select this component when a precise 11.0592 MHz timing source is required within low-voltage digital systems. Consider the ±30 ppm stability requirement for applications sensitive to clock drift. Ensure the supply voltage remains within the 1.62V to 3.63V window to maintain signal integrity and proper enable functionality across the specified temperature range.

Oscillators Part Context

This model belongs to the SX5M series of surface-mount oscillators from Shenzhen SCTF Electronics. The series typically offers various frequencies and stability options in standardized packages. This specific part number denotes a fixed 11.0592 MHz output with defined electrical characteristics and thermal ratings for general-purpose electronic timing applications.

Oscillators Replacement Considerations

Cross-reference compatible parts from other manufacturers offering identical 11.0592 MHz frequency, CMOS output, and 4-SMD package dimensions. Verify that substitute components meet the same ±30 ppm stability and voltage requirements.
