Product Detailed Parameters
- Description：IC MOTOR DRVR 13.5V-16.5V 27SOP
- Series：-
- Mfr：Sanken Electric USA Inc.
- Package：Tape & Reel (TR)
- Motor Type - Stepper：-
- Motor Type - AC, DC：Brushless DC (BLDC)
- Function：Driver - Fully Integrated, Control and Power Stage
- Output Configuration：Half Bridge (3)
- Interface：Parallel
- Technology：Power MOSFET
- Step Resolution：-
- Applications：Appliance
- Current - Output：1.5A
- Voltage - Supply：13.5V ~ 16.5V
- Voltage - Load：400V (Max)
- Operating Temperature：-20°C ~ 150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：36-SOP (0.449", 11.40mm Width), 27 Leads
- Supplier Device Package：27-SOP
- Grade：-
- Qualification：-
Download product information
Overview

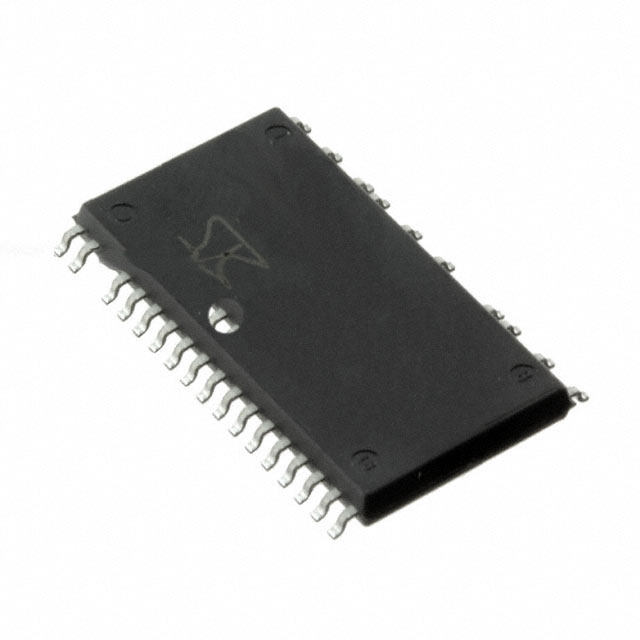

The SX68002MH is a high voltage three-phase motor driver manufactured by Sanken Electric USA Inc. It integrates power MOSFETs rated for 250 V or 500 V with control circuitry to drive full bridges. The device supports a load voltage up to 400 V and operates within a temperature range of -30°C to 100°C. It is available in surface mount packages, specifically the 27-SOP configuration, designed for efficient integration into motor control systems requiring compact form factors.
Feature Summary
- Integrates high-voltage MOSFETs with control logic for three-phase motor driving
- Supports 250 V and 500 V rated MOSFET options within the series
- Designed for surface mount assembly in compact applications
Applications
- Three-phase fan motor drivers
- High voltage motor control systems
- Industrial appliance motor drives
Procurement Notes
Verify the specific voltage rating (250 V or 500 V) required for your application, as the SX68000MH series encompasses multiple variants. Confirm the exact package type matches your PCB layout requirements. Check current availability status as stock levels may vary. Ensure compatibility with your system's thermal management design given the operating temperature range.
Selection Notes
Select this component when a fully integrated solution for three-phase BLDC or AC motors is needed. Consider the 27-SOP package for space-constrained designs. Evaluate the 250 V versus 500 V MOSFET rating based on your bus voltage requirements. Compare against similar series members like SX68000MH if different pinouts or ratings are preferred.
Part Context
The SX68002MH belongs to the SX6800xM series of high voltage three-phase motor drivers from Sanken Electric. This family includes variants such as SX68000MH and SX68001MH, offering integrated solutions for driving three-phase loads. These devices combine power switching elements with gate drive circuits to simplify motor control board designs.
Replacement Considerations
SX68000MH is listed as a similar part number within the same series. Verify electrical parameters and pinout compatibility before substitution. Other series members like SLA6820M or SMA6850M serve similar functions but may differ in package or specific ratings.
