SX7

Overview

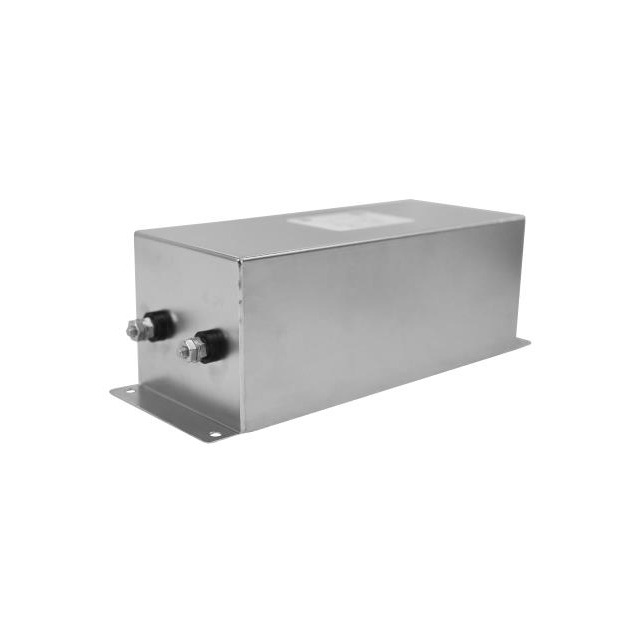

The SX7 is a single-phase EMC/EMI line filter module from the RP480 series by Astrodyne TDI. It features a three-stage design with quick-connect terminals, rated for 7.5 A and 250 VAC at 50/60 Hz. The unit provides enhanced switching mode EMI filtering capabilities.

Feature Summary

• Three-stage EMI/EMC filtering architecture
• Quick-connect terminal interface
• Single-phase power line configuration

Applications

• Switching mode power supply input protection
• Industrial power conditioning equipment
• Electronic devices requiring EMI suppression

Procurement Notes

Verify availability through authorized distributors as stock status varies. Confirm RoHS compliance details via the official datasheet before integration. Ensure voltage and current ratings match system requirements to prevent performance degradation or failure during operation.

Selection Notes

Select this component for applications requiring compact single-phase EMI filtration. Verify that the 7.5 A rating and 250 VAC specification align with the target circuit parameters. Consider the quick-connect mounting style for assembly compatibility within the final enclosure design constraints.

Part Context

This part belongs to the RP480 series of power line filters manufactured by Astrodyne TDI. The series focuses on providing robust EMC solutions for demanding industrial and commercial environments, emphasizing reliability and effective noise suppression in power distribution systems.

Replacement Considerations

Consult the official datasheet for direct pin-compatible substitutes. Verify electrical specifications such as leakage current and insertion loss when evaluating alternative components from other manufacturers to ensure equivalent performance.
