SX7M50.000B20F30TNF

Oscillators Overview

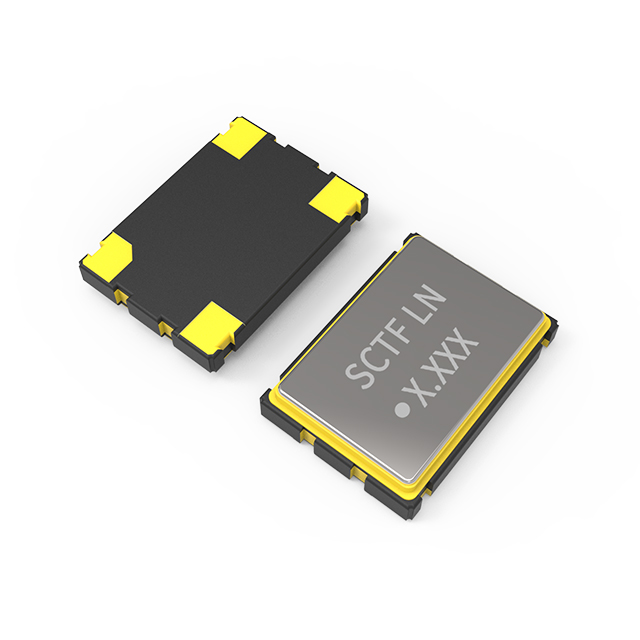

The SX7M50.000B20F30TNF is a surface-mount crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a nominal frequency of 50 MHz with a CMOS output waveform. The device supports a supply voltage range of 1.62V to 3.63V and features an enable/disable control function. It is housed in a 4-SMD, no-lead package measuring 7.0mm x 5.0mm x 1.4mm. The unit maintains a load frequency tolerance of ±20ppm and a total frequency stability of ±30ppm across the industrial temperature range of -40°C to +85°C.

Oscillators Feature Summary

• Integrated enable and disable control functionality for power management
• CMOS output signal compatibility with standard digital logic interfaces
• Industrial-grade temperature rating suitable for harsh environments

Oscillators Applications

• High-speed data communication systems requiring precise clocking
• Embedded processing units needing stable timing references
• Consumer electronics utilizing multi-voltage power architectures

Oscillators Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct voltage and tolerance specifications. Confirm that the package dimensions match the target PCB footprint requirements. Check for any recent updates to the datasheet regarding pin configuration or electrical characteristics before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a 50 MHz clock source is required within a 7.0x5.0mm SMD form factor. Ensure the system design accommodates the 1.62V to 3.63V operating range. Consider the enable/disable feature if dynamic power saving is necessary. Verify that the ±30ppm stability meets the jitter and timing constraints of the connected circuitry.

Oscillators Part Context

This oscillator belongs to the SX7M series from Shenzhen SCTF Electronics, designed for compact electronic applications. The series typically offers various frequency options and package sizes. The B20F30 suffix indicates specific performance parameters including load tolerance and stability limits, distinguishing it from other variants in the product line.

Oscillators Replacement Considerations

Cross-reference part numbers such as SX7M50.000M20F30TNN for potential substitutes. Ensure that any replacement matches the 50 MHz frequency, CMOS output type, and 7.0x5.0mm package dimensions. Verify that the substitute component supports the same voltage range and temperature specifications.
