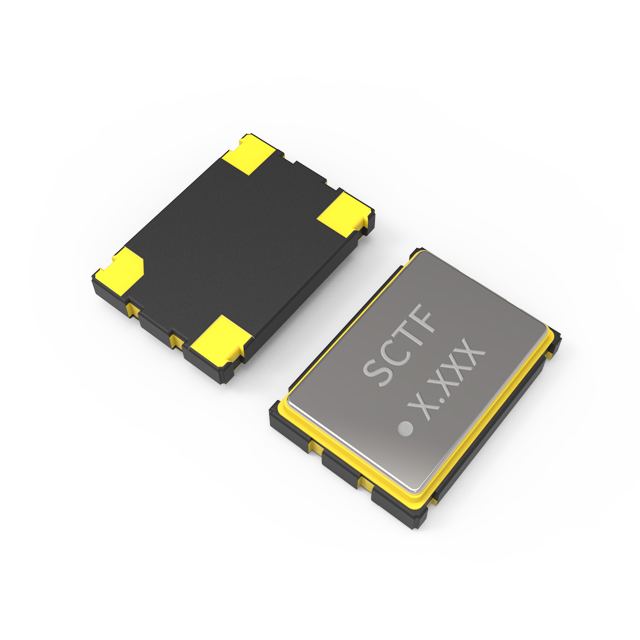

Oscillators SX7M65.536D10F20TNN product image

SX7M65.536D10F20TNN

$1.31

Description：XTAL OSC XO 65.5360MHz CMOS SMD
Series：7C
Mfr：Shenzhen SCTF Electronics
Package：Tape & Reel (TR)

SKU:ebf1e303b9ed Category: Oscillators Brand: Shenzhen SCTF Electronics

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SX7M65.536D10F20TNN is listed in the Oscillators range at ChipApex. The manufacturer field lists Shenzhen SCTF Electronics. Its product description is XTAL OSC XO 65.5360MHz CMOS SMD. Review the specifications below when checking this part for your BOM.

Oscillators specifications for SX7M65.536D10F20TNN

Description：XTAL OSC XO 65.5360MHz CMOS SMD
Series：7C
Mfr：Shenzhen SCTF Electronics
Package：Tape & Reel (TR)
Base Resonator：Crystal
Type：XO (Standard)
Frequency：65.536 MHz
Function：Enable/Disable
Output：CMOS
Voltage - Supply：1.8V
Frequency Stability：±30ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：20mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Size / Dimension：0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)：0.059" (1.50mm)

Oscillators datasheet and documents for SX7M65.536D10F20TNN
