SX7M74.250D10F20TNN

Oscillators Overview

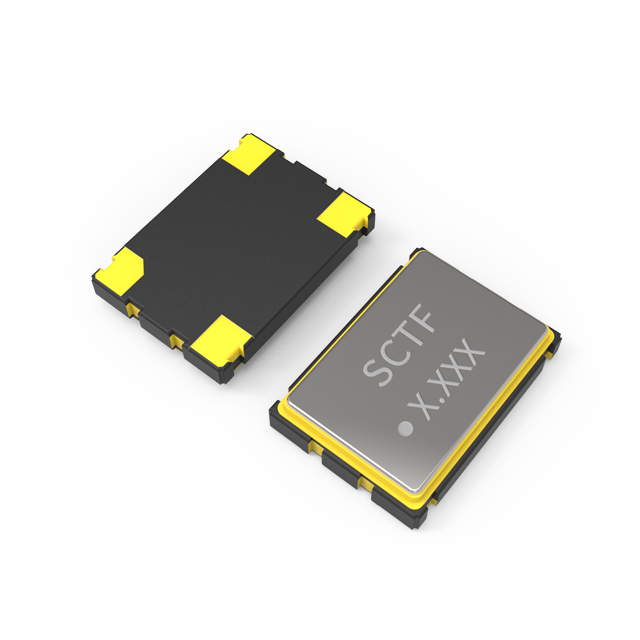

The SX7M74.250D10F20TNN is a 74.25 MHz crystal oscillator manufactured by Shenzhen SCTF Electronics. It utilizes CMOS output technology and operates at a supply voltage of 3.3V. The device features an Enable/Disable control function for power management. It is housed in a compact 4-SMD, No Lead package, designed for surface-mount assembly on printed circuit boards.

Oscillators Feature Summary

• Provides stable 74.25 MHz clock signals via standard CMOS outputs
• Integrates enable and disable functionality for efficient power control
• Designed for direct surface-mount installation using a leadless SMD form factor

Oscillators Applications

• Digital signal processing systems requiring precise timing references
• Communication equipment utilizing standard CMOS logic interfaces
• Embedded computing modules with surface-mount constraints

Oscillators Procurement Notes

Verify the specific suffix D10F20 against official datasheets to confirm tolerance and temperature range specifications. Ensure the 3.3V supply requirement aligns with the target system design. Confirm the 4-SMD no-lead footprint matches the PCB layout guidelines provided by Shenzhen SCTF Electronics before finalizing procurement.

Oscillators Selection Notes

Select this component when a 74.25 MHz frequency is required within a 3.3V CMOS environment. The enable/disable feature supports dynamic power management strategies. The surface-mount package facilitates automated assembly processes suitable for high-volume manufacturing applications.

Oscillators Part Context

This oscillator belongs to the standard series from Shenzhen SCTF Electronics. It serves as a primary clock source for digital circuits. The model designation indicates specific electrical and mechanical parameters defined by the manufacturer for integration into electronic assemblies.

Oscillators Replacement Considerations

Consult official substitution lists from Shenzhen SCTF Electronics for compatible alternatives. Verify that any replacement maintains the 74.25 MHz frequency, 3.3V operation, and 4-SMD package dimensions.
