SX7V4.096B10080F20TNNS

Oscillators Overview

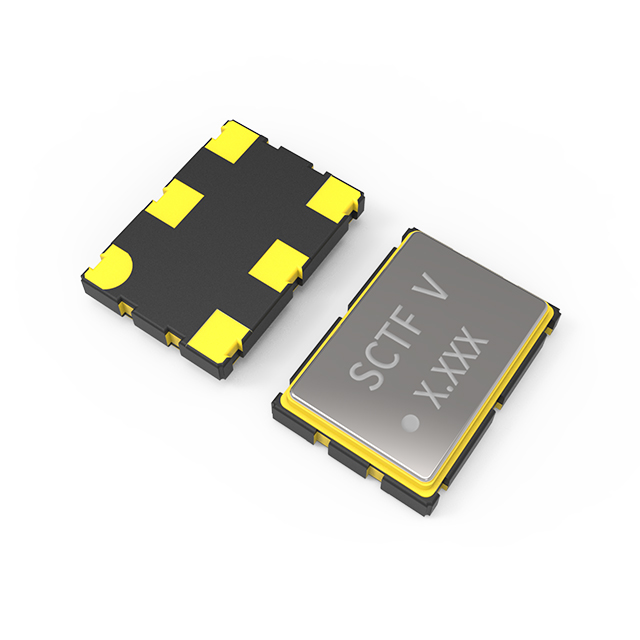

The SX7V4.096B10080F20TNNS is a Voltage Controlled Crystal Oscillator (VCXO) manufactured by Shenzhen SCTF Electronics. It operates at a nominal frequency of 4.096 MHz and utilizes CMOS output logic. The device is designed for surface mount applications, featuring a compact 6-SMD, No Lead package configuration. It supports a supply voltage range of 3.3 V and includes an integrated Enable/Disable control function for power management flexibility. This component serves as a precise timing source suitable for digital communication systems requiring stable clock signals with voltage-controlled frequency adjustment capabilities.

Oscillators Feature Summary

• Voltage controlled crystal oscillator architecture providing adjustable frequency stability
• CMOS output logic compatible with standard digital interfaces
• Integrated enable and disable control pin for active power management
• Compact surface mount package design optimized for automated assembly

Oscillators Applications

• Digital communication equipment requiring precise clock generation
• Telecommunications infrastructure utilizing voltage controlled timing sources
• Consumer electronics devices needing low profile oscillators
• Industrial control systems requiring stable frequency references

Oscillators Procurement Notes

Verify the specific manufacturer designation Shenzhen SCTF Electronics against authorized distribution channels to ensure component authenticity. Confirm that the 6-SMD No Lead package dimensions align with your printed circuit board layout requirements. Ensure the 3.3 V supply voltage specification matches your system power rails. Validate the CMOS output compatibility with your receiving logic gates. Check for any specific handling instructions related to surface mount thermal profiles during soldering processes.

Oscillators Selection Notes

Select this component when a voltage controlled crystal oscillator is required for frequency tuning applications. The 4.096 MHz frequency suits standard data transmission rates. The CMOS output type ensures compatibility with various digital logic families. The enable/disable feature allows for dynamic power conservation in battery-operated devices. Consider the 6-SMD package size constraints during mechanical design integration.

Oscillators Part Context

This part belongs to the category of frequency controllers and timing devices, specifically within the oscillator segment. It represents a specialized component used for generating stable clock signals in electronic circuits. The voltage controlled nature distinguishes it from fixed frequency oscillators, allowing for phase-locked loop implementations. Shenzhen SCTF Electronics positions this item among their passive components and timing solutions portfolio.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify electrical parameters such as frequency tolerance, load capacitance, and drive level before considering alternative vendors. Ensure pinout compatibility if substituting with similar VCXO packages.
