SXBP-1430+

Overview

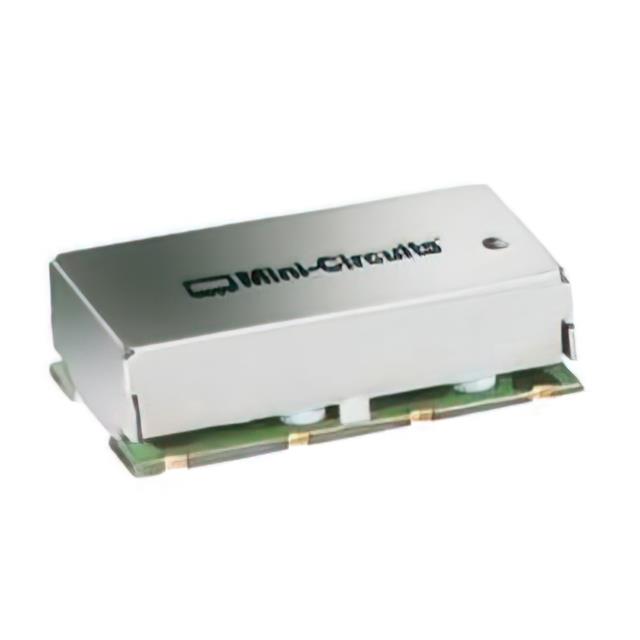

The SXBP-1430+ is a surface-mount bandpass filter from Mini-Circuits, designed for RF signal conditioning. It operates within a passband of 950 MHz to 2150 MHz, providing a bandwidth of 1200 MHz with a center frequency of 1430 MHz. The component features an insertion loss of 1.5 dB and maintains a 50 Ohm impedance. Packaged in an 8-SMD, no-lead form factor, it supports board mounting and functions reliably across an operating temperature range of -40°C to +85°C.

Feature Summary

• Utilizes lumped LC technology for precise signal filtering within specified frequency bands.
• Housed in a shielded case to minimize interference and ensure signal integrity.
• Designed for SMT assembly with aqueous washable construction options.

Applications

• Harmonic rejection in RF systems
• Transmitter and receiver signal conditioning
• Industrial microwave and RF equipment
• Telecommunication and broadband networks

Procurement Notes

Verify the specific datasheet version and test criteria before integration. Confirm that the 8-SMD package dimensions align with your PCB footprint. Ensure environmental conditions remain within the -40°C to +85°C operational range. Check for any specific handling requirements associated with the SMT process and aqueous washability if applicable.

Selection Notes

Select this component when a 1200 MHz bandwidth centered at 1430 MHz is required. The 1.5 dB insertion loss suits applications prioritizing moderate signal attenuation. The 50 Ohm impedance matches standard RF infrastructure. Consider the SMD package size for space-constrained designs requiring robust shielding.

Part Context

This part belongs to the SXBP series of surface-mount bandpass filters. These components are engineered using lumped LC technology to provide effective out-of-band signal rejection. The series is characterized by its compact shielded case design, making it suitable for modern miniaturized electronic devices requiring reliable RF performance.

FAQ

What is the center frequency of the SXBP-1430+?

The center frequency is 1430 MHz.

Does the SXBP-1430+ support aqueous washing?

Yes, Mini-Circuits BPF surface-mount filters feature aqueous washable construction.
