SXLP-27+

Overview

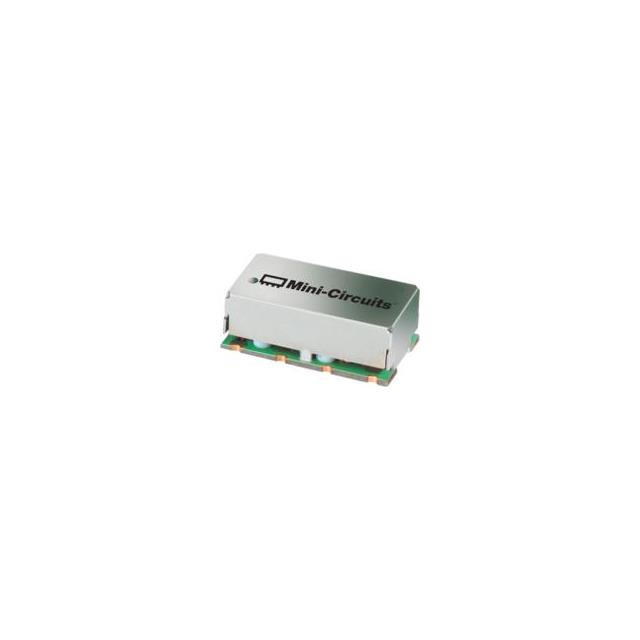

The SXLP-27+ is a lumped LC low-pass filter manufactured by Mini-Circuits, designed for radio frequency applications. It features a cutoff frequency of 27 MHz and operates with a characteristic impedance of 50 ohms. The device supports a bandwidth from DC to the specified cutoff point. It is housed in an 8-SMD, no-lead surface-mount package, facilitating integration into compact electronic circuits requiring signal filtering.

Feature Summary

• Utilizes lumped LC technology for effective signal processing
• Provides low-pass filtering characteristics with defined cutoff frequency
• Designed for surface-mount assembly on printed circuit boards

Applications

• Radio frequency signal conditioning
• Interference suppression in communication systems
• Test and measurement equipment input stages

Procurement Notes

Verify the exact part number suffix against official Mini-Circuits documentation to ensure correct specifications. Confirm package type and termination style match design requirements. Check for RoHS compliance status if required by project standards. Validate electrical parameters such as insertion loss and stopband attenuation against current datasheet revisions before finalizing procurement decisions.

Selection Notes

Select this component when a sharp cutoff at 27 MHz is required for 50-ohm systems. Consider the SMD package size for board space constraints. Evaluate group delay and insertion loss characteristics against system sensitivity requirements. Ensure compatibility with automated pick-and-place processes due to the no-lead surface mount design.

Part Context

This component belongs to the SXLP series of lumped element filters from Mini-Circuits. The series offers various cutoff frequencies tailored for different RF applications. These filters are engineered for high performance in microwave and radio frequency environments, providing reliable signal integrity across diverse electronic designs.

Replacement Considerations

Consult Mini-Circuits official substitution guides for verified alternatives. Cross-reference cutoff frequency and impedance values to ensure functional equivalence. Verify package dimensions and pinout compatibility before replacing existing components in established designs.
