SXO53L3A381-106.250M

Oscillators Overview

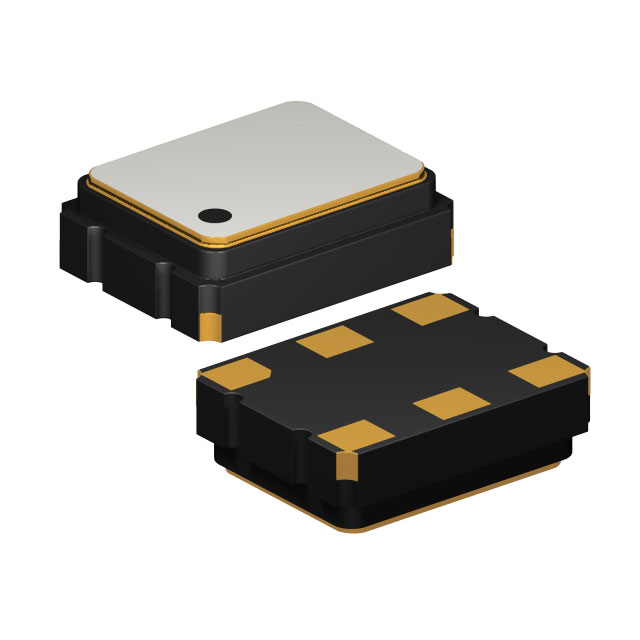

The SXO53L3A381-106.250M is a standard crystal oscillator manufactured by Suntsu Electronics, Inc., designed for high-precision timing applications. It operates at a nominal frequency of 106.25 MHz and utilizes LVDS output logic to ensure signal integrity in high-speed digital environments. The device is powered by a 3.3V supply voltage with a tolerance of ±5%. It features an enable/disable control function, allowing for power management flexibility. The component is housed in a compact 6-SMD, No Lead package with dimensions of 5.00mm x 3.20mm, suitable for surface-mount assembly. It supports an operating temperature range from -30°C to +85°C.

Oscillators Feature Summary

• LVDS output interface for high-speed data transmission
• Integrated enable/disable control functionality
• Compact 6-SMD no-lead surface mount package

Oscillators Applications

• High-speed serial communication interfaces
• Network synchronization equipment
• Digital signal processing systems

Oscillators Procurement Notes

Verify the specific ordering suffix matches the required output logic and frequency accuracy. Confirm that the 3.3V supply voltage aligns with the system design requirements. Ensure the operating temperature range meets the environmental conditions of the intended application. Check for RoHS compliance status if required by regulatory standards.

Oscillators Selection Notes

Select this oscillator when LVDS signaling is required for noise immunity and high-frequency performance. Consider the 5.00mm x 3.20mm footprint for space-constrained PCB layouts. Evaluate the -30°C to +85°C range against operational extremes. Compare alternative frequencies within the same series if 106.25 MHz is not strictly necessary.

Oscillators Part Context

This component belongs to the SXO53 series of crystal oscillators from Suntsu Electronics, Inc. The series offers various frequencies and output types, including CMOS and LVDS options. The 'L' in the part number typically denotes LVDS output, while 'A' may indicate specific pinout or feature variations within the product line.

Oscillators Replacement Considerations

Direct substitutes include other 106.25 MHz LVDS oscillators in 6-SMD packages from compatible manufacturers. Verify pin compatibility and electrical specifications before substitution.
