SXOA54.000B20F30TNN

Oscillators Overview

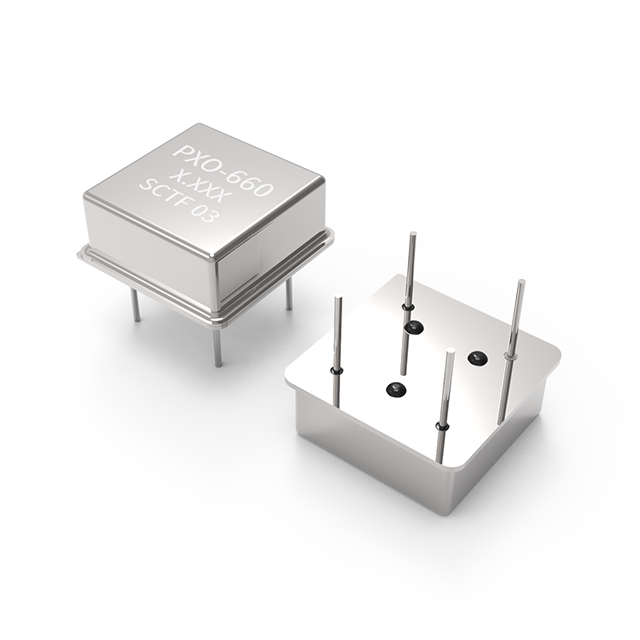

The SXOA54.000B20F30TNN is a standard crystal oscillator manufactured by Shenzhen SCTF Electronics, operating at a frequency of 54 MHz. It utilizes CMOS output logic and functions with a supply voltage of 3.3V. The device features an enable and disable control function for power management. It is housed in an 8-DIP package configuration, specifically utilizing four leads within a half-size metal can enclosure.

Oscillators Feature Summary

• CMOS output logic interface
• Enable and disable control functionality
• Half-size metal can packaging

Oscillators Applications

• Frequency measurement systems
• Electronic company cards
• General digital circuit timing

Oscillators Procurement Notes

Verify the manufacturer designation as Shenzhen SCTF Electronics against official component documentation to ensure authenticity. Confirm that the specific ordering suffix matches the required electrical parameters, including the 54 MHz frequency, 3.3V supply voltage, and CMOS output type. Ensure the physical package corresponds to the 8-DIP form factor with four leads in a half-size metal can configuration before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a standard CMOS oscillator with enable/disable control is required for 54 MHz applications. The half-size metal can package offers a compact solution suitable for space-constrained designs. Verify compatibility with 3.3V logic levels and ensure the system design supports the specific DIP footprint and lead configuration provided by this model.

Oscillators Part Context

This oscillator belongs to the standard XO category, providing precise clock signals for digital circuits. The integration of enable and disable controls allows for dynamic power management within the host system. The metal can construction provides shielding against electromagnetic interference, ensuring signal integrity in sensitive electronic environments.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available in the source material.
