SXOA6.000A20F30TNN

Oscillators Overview

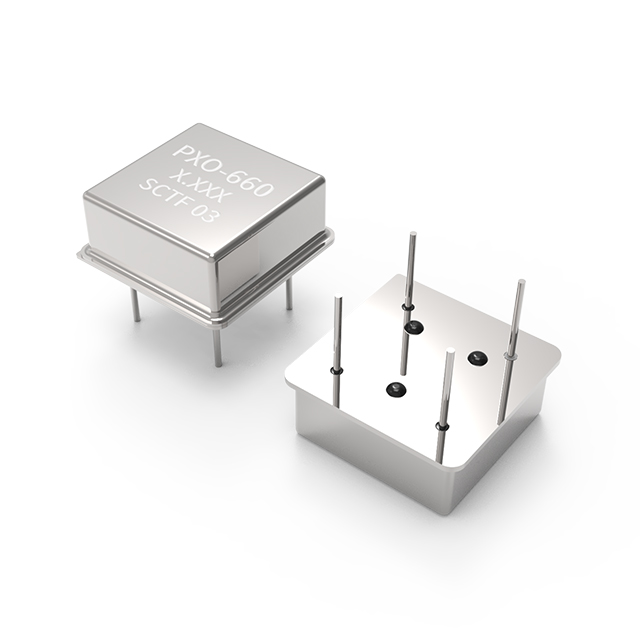

The SXOA6.000A20F30TNN is a standard CMOS oscillator manufactured by Shenzhen SCTF Electronics, operating at a frequency of 6 MHz. It features a 5V supply voltage with integrated enable and disable control functionality. The component utilizes an 8-DIP package configuration with four leads, specifically designed as a half-size metal can for through-hole mounting. This part is categorized as an active electronic component suitable for applications requiring precise clock signals with power management capabilities.

Oscillators Feature Summary

• Integrates CMOS output technology for standard digital logic interfacing
• Provides hardware enable and disable control for power management
• Utilizes a compact half-size metal can package for reliable shielding

Oscillators Applications

• General-purpose digital circuit clock generation
• Embedded systems requiring low-power standby modes
• Industrial control equipment with strict size constraints

Oscillators Procurement Notes

Verify the specific manufacturer datasheet to confirm electrical tolerances and pinout configurations before integration. Ensure that the 5V supply voltage aligns with the target system's power rails. Confirm that the enable/disable control logic levels are compatible with the driving microcontroller or FPGA outputs to prevent unintended oscillation states during operation.

Oscillators Selection Notes

Select this component when a standard CMOS clock source with external power control is required in a through-hole assembly. The half-size metal can package offers a balance between physical footprint reduction and electromagnetic interference shielding compared to larger DIP packages. Consider the 6 MHz frequency requirement against available alternatives if higher precision or different frequencies are needed.

Oscillators Part Context

This oscillator belongs to the standard XO series from Shenzhen SCTF Electronics, designed for general-purpose timing applications. The product line typically includes various frequencies and package sizes, with this specific model focusing on the 6 MHz range. The metal can construction distinguishes it from plastic-packaged variants, offering enhanced environmental protection and signal integrity for sensitive analog or mixed-signal circuits.

Oscillators Replacement Considerations

Cross-reference with other 6 MHz CMOS oscillators in 8-DIP half-size metal cans. Verify that substitute parts support the same 5V enable/disable control mechanism and output voltage levels. Ensure mechanical dimensions match the existing PCB footprint to avoid rework.
