SXOA64.000A20F30TNN

Oscillators Overview

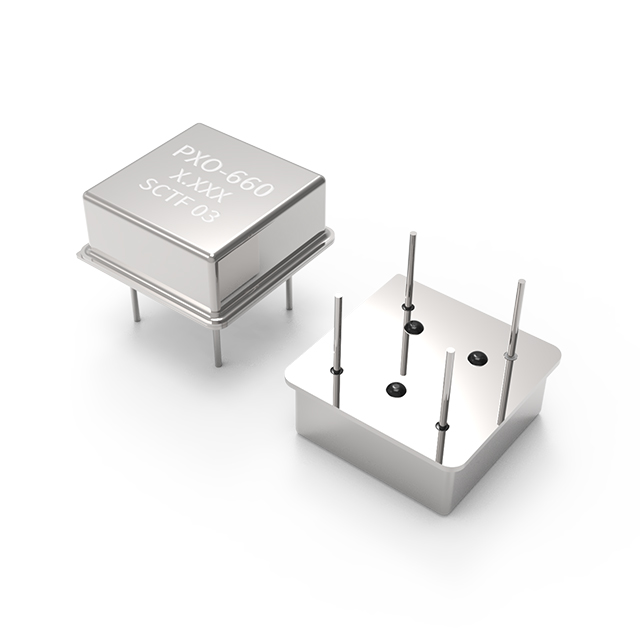

The SXOA64.000A20F30TNN is a standard crystal oscillator (XO) manufactured by Shenzhen SCTF Electronics, designed for precise timing applications. It operates at a nominal frequency of 64 MHz with a CMOS output type and supports a supply voltage of 5V. The device features a frequency stability of ±50ppm and functions within an operating temperature range of -40°C to +85°C. Packaged in an 8-DIP half-size configuration with four pins, it includes enable/disable functionality for power management.

Oscillators Feature Summary

• CMOS output interface compatible with standard digital logic circuits
• Integrated enable and disable control for active power management
• Standard XO design providing stable oscillation across industrial temperature ranges

Oscillators Applications

• Digital clock signal generation in embedded systems
• Microcontroller and processor clock sources
• Industrial communication bus timing synchronization

Oscillators Procurement Notes

Verify the specific package dimensions against the manufacturer's mechanical drawing to ensure compatibility with the target PCB footprint, as DIP variations exist. Confirm that the required load capacitance matches the system design, although internal compensation is typical for this oscillator class. Ensure the 5V supply rail meets the current consumption specifications during both active and disabled states to maintain signal integrity and prevent voltage droop during transient loads.

Oscillators Selection Notes

Select this component when a 64 MHz reference is required for CMOS-compatible logic interfaces. The ±50ppm stability suits general-purpose timing needs rather than high-precision RF applications. Consider the 8-DIP half-size form factor if through-hole assembly or legacy socketing is preferred over surface-mount alternatives. Verify that the enable pin logic levels align with the controlling microcontroller's I/O voltage thresholds.

Oscillators Part Context

This part belongs to the series of standard crystal oscillators produced by Shenzhen SCTF Electronics. These devices are engineered to replace discrete crystal and IC combinations, offering a compact solution for timing requirements. The SXOA series typically utilizes AT-cut quartz crystals for superior frequency stability and aging characteristics compared to ceramic resonators.

Oscillators Replacement Considerations

Direct replacements must match the 64 MHz frequency, CMOS output, 5V supply, and 8-DIP half-size package. Verify that substitute parts offer equal or better frequency stability (±50ppm) and operate within the same -40°C to +85°C temperature range. Check pinout compatibility, specifically the enable/disable function mapping.
