SXOA66.000A20F30TNN

Oscillators Overview

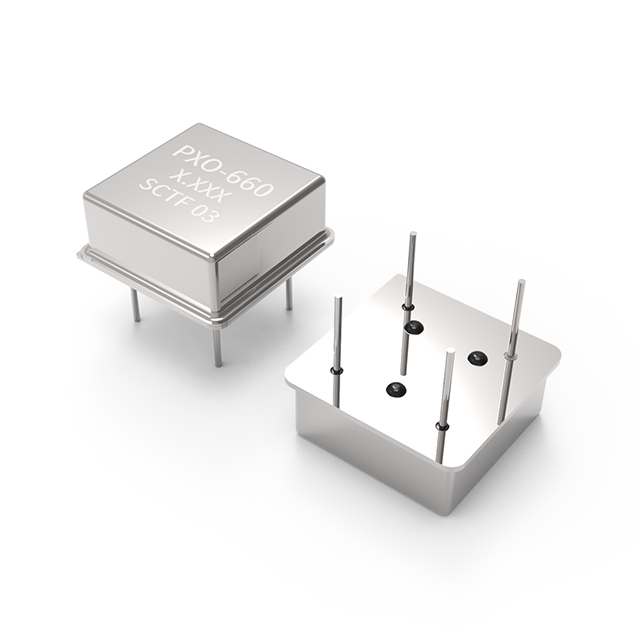

The SXOA66.000A20F30TNN is a 66 MHz CMOS crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates with a 5V supply and features an Enable/Disable control function. The component is housed in an 8-DIP package, specifically utilizing a half-size metal can configuration with four leads. This standard oscillator provides precise timing signals for electronic circuits requiring stable clock frequencies.

Oscillators Feature Summary

• CMOS output signal generation
• Enable/Disable functionality
• Half-size metal can construction

Oscillators Applications

• General electronic timing circuits
• Digital system clock sources
• Embedded hardware modules

Oscillators Procurement Notes

Verify the specific manufacturer designation Shenzhen SCTF Electronics against official component databases to confirm authenticity. Ensure the ordering suffix matches the required electrical parameters and packaging specifications exactly. Cross-reference the part number with authorized distributors to validate current availability and compliance status before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a 66 MHz frequency is required alongside a 5V operating voltage. The Enable/Disable feature allows for power management control within the circuit design. Consider the 8-DIP half-size metal can package for applications needing robust shielding and standard through-hole mounting compatibility.

Oscillators Part Context

This oscillator belongs to the series of standard CMOS timing devices designed for digital applications. It provides a reliable square wave output suitable for microprocessors and logic circuits. The metal can package offers environmental protection compared to plastic variants.

Oscillators Replacement Considerations

Consult official manufacturer substitution lists for verified equivalent components. Generic replacements may differ in pinout or electrical characteristics. Verify that any substitute maintains the 66 MHz frequency and 5V CMOS interface requirements.
