SXOA66.000B20F30TNN

Oscillators Overview

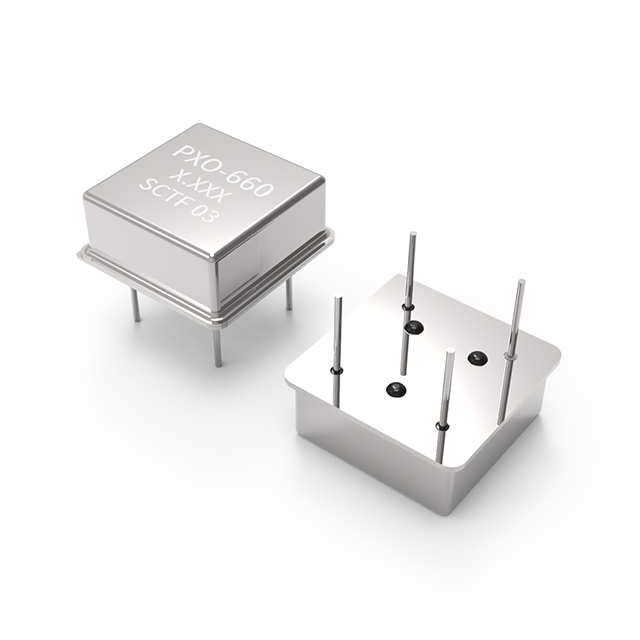

The SXOA66.000B20F30TNN is a 66 MHz crystal oscillator manufactured by Shenzhen SCTF Electronics. It utilizes CMOS output technology and operates at a supply voltage of 3.3V. The device features an enable and disable control function for power management. It is housed in an 8-DIP package with four leads, specifically designed as a half-size metal can configuration.

Oscillators Feature Summary

• CMOS output signal generation
• Integrated enable/disable control functionality
• Half-size metal can DIP packaging

Oscillators Applications

• General electronic timing circuits
• Digital system clock sources
• Embedded hardware applications

Oscillators Procurement Notes

Verify the specific manufacturer part number against official component databases to ensure authenticity. Confirm that the 8-DIP half-size metal can package matches the design requirements. Ensure the CMOS output type and 3.3V operating voltage are compatible with the target circuit interface before finalizing procurement.

Oscillators Selection Notes

Select this component when a standard CMOS frequency reference is required in a through-hole metal can form factor. The integrated enable pin allows for system-level power control. Verify that the 66 MHz frequency aligns with the system clock requirements and that the 3.3V logic level is suitable for the connected digital inputs.

Oscillators Part Context

This oscillator belongs to the standard active crystal oscillator category produced by Shenzhen SCTF Electronics. It provides a stable clock signal for digital systems. The half-size DIP variant offers a compact solution for legacy or space-constrained through-hole designs requiring reliable timing references.

Oscillators Replacement Considerations

Cross-reference with other 66 MHz CMOS oscillators in 8-DIP packages from the same manufacturer. Ensure equivalent electrical specifications and pinout compatibility if substituting with similar half-size metal can components.
