SXOA7.3728B20F30TNN

Oscillators Overview

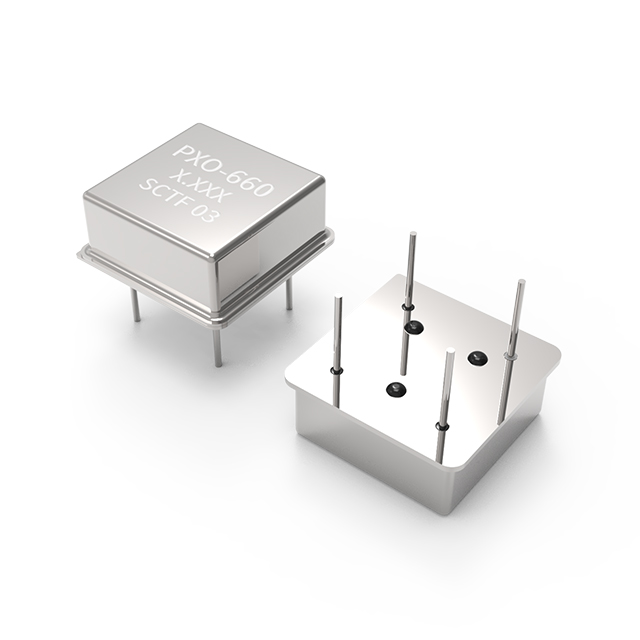

The SXOA7.3728B20F30TNN is a standard CMOS oscillator manufactured by Shenzhen SCTF Electronics, operating at a frequency of 7.3728 MHz. It functions as a clock source with a supply voltage of 3.3V and features an enable/disable control interface. The component is housed in an 8-DIP package with four leads, utilizing a half-size metal can construction.

Oscillators Feature Summary

• CMOS output technology for digital logic compatibility
• Integrated enable and disable signal control functionality
• Half-size metal can housing providing electromagnetic shielding

Oscillators Applications

• General-purpose digital circuit clock generation
• Embedded system timing references
• Microcontroller peripheral synchronization

Oscillators Procurement Notes

Verify the exact part number against official manufacturer documentation to ensure correct configuration. Confirm that the 3.3V supply requirement and enable/disable pinout match the target design specifications before procurement.

Oscillators Selection Notes

Select this component when a precise 7.3728 MHz reference is required for CMOS-based logic circuits. Ensure the design accommodates the specific 8-DIP footprint and the thermal characteristics associated with the half-size metal can enclosure.

Oscillators Part Context

This oscillator belongs to the standard XO series from Shenzhen SCTF Electronics, designed for reliable timing applications. It utilizes a metal can package to protect the internal resonator while maintaining a compact profile suitable for space-constrained electronic assemblies.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
