SXOA75.000A20F30TNN

Oscillators Overview

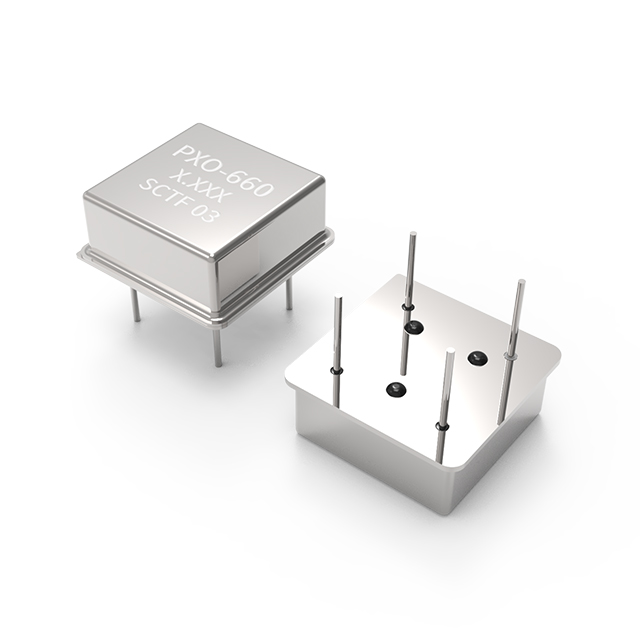

The SXOA75.000A20F30TNN is a 75 MHz CMOS crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a supply voltage of 5V and features an enable/disable control function. The component utilizes an 8-DIP package with four leads, specifically designed as a half-size metal can housing. This configuration provides a compact footprint suitable for space-constrained electronic designs requiring stable clock signals.

Oscillators Feature Summary

• Integrates enable and disable functionality for power management
• Utilizes a half-size metal can DIP package for durability
• Delivers standard CMOS output signal levels

Oscillators Applications

• General-purpose digital circuit timing
• Embedded system clock generation
• Microcontroller peripheral synchronization

Oscillators Procurement Notes

Verify the specific manufacturer designation against official datasheets to ensure compatibility with the intended application requirements. Confirm that the 5V operating voltage aligns with the target circuit design. Ensure the half-size DIP package dimensions fit within the available board space constraints.

Oscillators Selection Notes

Select this component when a 75 MHz frequency is required alongside a 5V logic interface. Consider the physical size limitations of the enclosure, as the half-size metal can offers a smaller profile than standard DIP packages. Evaluate the need for active enable/disable controls in the system architecture before finalizing the selection.

Oscillators Part Context

This oscillator belongs to the series of surface mount and through-hole components designed for frequency control applications. It serves as a critical timing reference in electronic systems where precise clock synchronization is necessary for data transmission and processing operations.

Oscillators Replacement Considerations

Cross-reference pinout configurations and electrical specifications with alternative suppliers. Verify that any substitute part maintains the same 75 MHz frequency and 5V supply requirement to ensure functional equivalence.
