SXOB66.666A20F30TNN

Oscillators Overview

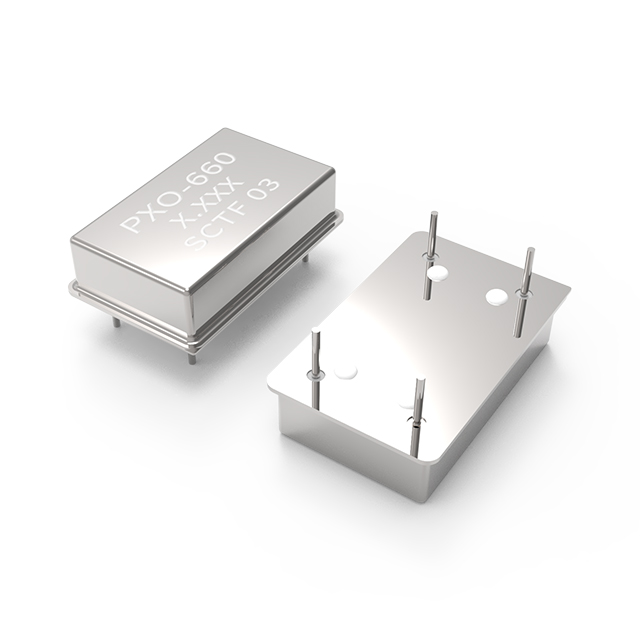

The SXOB66.666A20F30TNN is a crystal oscillator manufactured by Shenzhen SCTF Electronics, operating at a frequency of 66.666 MHz. It utilizes CMOS output technology and supports voltage enable/disable functionality. The component is housed in an 8-DIP through-hole package. This configuration provides a standard form factor suitable for integration into various electronic circuits requiring precise clock signals.

Oscillators Feature Summary

• CMOS output signal generation
• Voltage enable and disable control capability
• Through-hole mounting via 8-DIP package

Oscillators Applications

• General-purpose digital clocking systems
• Embedded controller timing references
• Standard interface synchronization circuits

Oscillators Procurement Notes

Verify the exact part number against manufacturer documentation to ensure compatibility with specific voltage levels and load requirements. Confirm that the 8-DIP package dimensions align with the target PCB footprint. Check datasheet specifications for operating temperature range and supply voltage tolerances before finalizing procurement decisions.

Oscillators Selection Notes

Select this component when a standard CMOS clock source with enable/disable control is required. Ensure the application can accommodate the 8-DIP through-hole form factor. Verify that the 66.666 MHz frequency meets the system timing requirements. Consider thermal management and power supply stability for reliable operation within the specified operating conditions.

Oscillators Part Context

This oscillator belongs to the series of surface-mount or through-hole crystal oscillators designed for general electronic applications. It provides a stable clock signal derived from a quartz crystal resonator. The device is intended for use in consumer electronics, industrial controls, and communication equipment where a reliable timing reference is essential for system synchronization.

Oscillators Replacement Considerations

Consult official substitution lists for compatible alternatives. Ensure replacement parts match the 66.666 MHz frequency, CMOS output type, and 8-DIP package. Verify electrical parameters such as supply voltage and current consumption. Confirm mechanical dimensions and pinout compatibility to maintain system integrity during replacement.
