SXOB75.000A20F30TNN

Oscillators Overview

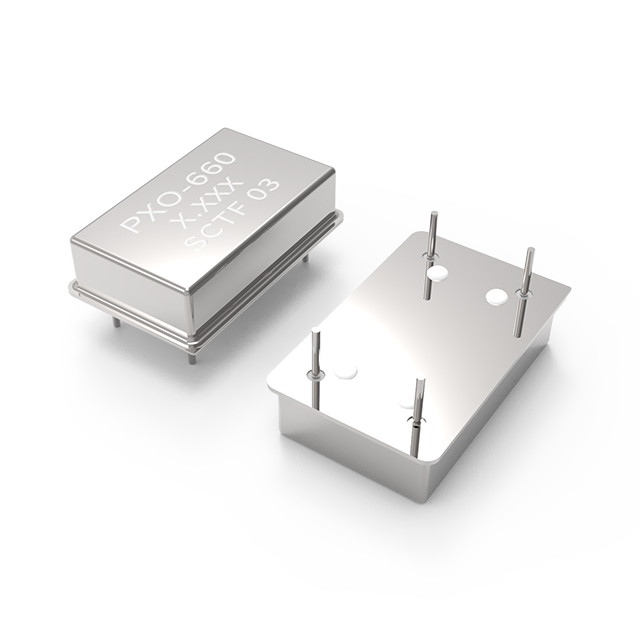

The SXOB75.000A20F30TNN is a standard crystal oscillator (XO) manufactured by Shenzhen SCTF Electronics, operating at a frequency of 75 MHz. It utilizes CMOS output logic and requires a 5V supply voltage. The component features enable and disable control capabilities for power management. It is housed in an 8-DIP package with 4 leads, specifically designed as a half-size metal can configuration.

Oscillators Feature Summary

• CMOS output signal generation
• Enable and disable control functionality
• Half-size metal can packaging

Oscillators Applications

• General electronic circuit timing
• Digital system clock sources
• Embedded device synchronization

Oscillators Procurement Notes

Verify the supply voltage specification carefully, as datasheets may list 3.3V or 5V variants within the same series. Confirm the package type matches the target PCB footprint. Ensure the enable/disable pin configuration aligns with the system design requirements before finalizing procurement.

Oscillators Selection Notes

Select this model when a 75 MHz CMOS clock source is required with low power consumption options via the enable pin. The 5V supply requirement distinguishes it from 3.3V variants. Consider the half-size DIP package for space-constrained designs requiring metal shielding against electromagnetic interference.

Oscillators Part Context

This part belongs to the OB series of oscillators from Shenzhen SCTF Electronics. The series offers various frequencies and packages, with this specific model providing a 75 MHz output in a compact metal can format suitable for industrial and commercial applications requiring stable clock signals.

Oscillators Replacement Considerations

The SXOB75.000B20F30TNN is a related variant but operates at 3.3V instead of 5V. Direct substitution requires verifying voltage compatibility. Other 75 MHz CMOS oscillators in similar packages may serve as alternatives if electrical parameters match.
