SXOB75.000B20F30TNN

Oscillators Overview

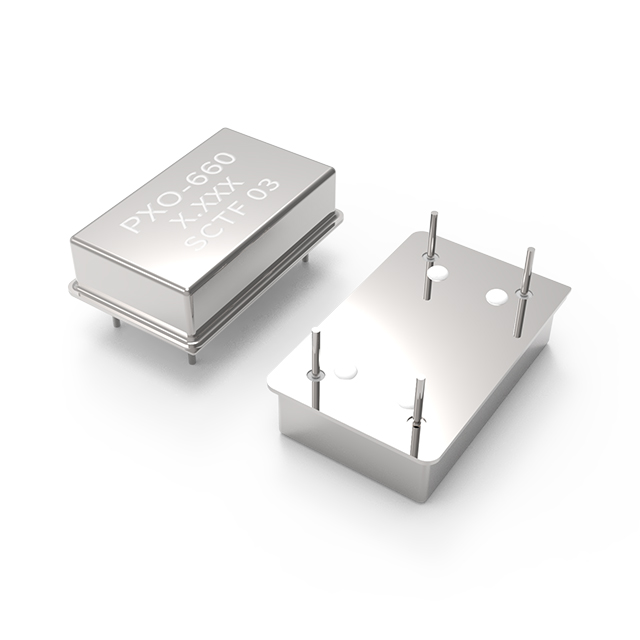

The SXOB75.000B20F30TNN is a standard CMOS oscillator manufactured by Shenzhen SCTF Electronics, operating at a nominal frequency of 75 MHz. It features a 3.3V supply voltage and utilizes an Enable/Disable control function for power management. The component is housed in an 8-DIP package with four leads, specifically designed as a half-size metal can configuration. This surface-mount device provides stable clock signals suitable for digital circuit applications requiring precise timing synchronization.

Oscillators Feature Summary

• CMOS output signal generation
• Enable/Disable control functionality
• Half-size metal can packaging

Oscillators Applications

• Digital system clocking
• Timing synchronization circuits
• Embedded system interfaces

Oscillators Procurement Notes

Verify the specific manufacturer designation Shenzhen SCTF Electronics against the component marking to ensure authenticity. Confirm the 8-DIP half-size metal can package dimensions match the design footprint requirements. Ensure the 3.3V logic level compatibility aligns with the target circuit's voltage specifications before integration.

Oscillators Selection Notes

Select this model when a compact 75 MHz CMOS oscillator with enable/disable capability is required. The half-size metal can package offers space efficiency compared to standard DIP formats. Consider the 3.3V operating voltage range to ensure compatibility with low-power digital designs and interface logic levels.

Oscillators Part Context

This component belongs to the series of surface-mount crystal oscillators produced by Shenzhen SCTF Electronics. It represents a specialized variant within their oscillator portfolio, focusing on compact form factors and controlled power states. The half-size metal can construction distinguishes it from larger DIP packages while maintaining robust signal integrity for high-frequency operations.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify pinout compatibility and electrical parameters if considering alternative manufacturers. Ensure any replacement matches the 8-DIP half-size metal can physical dimensions and 3.3V CMOS output characteristics.
