SXOB8.192A20F30TNN

Oscillators Overview

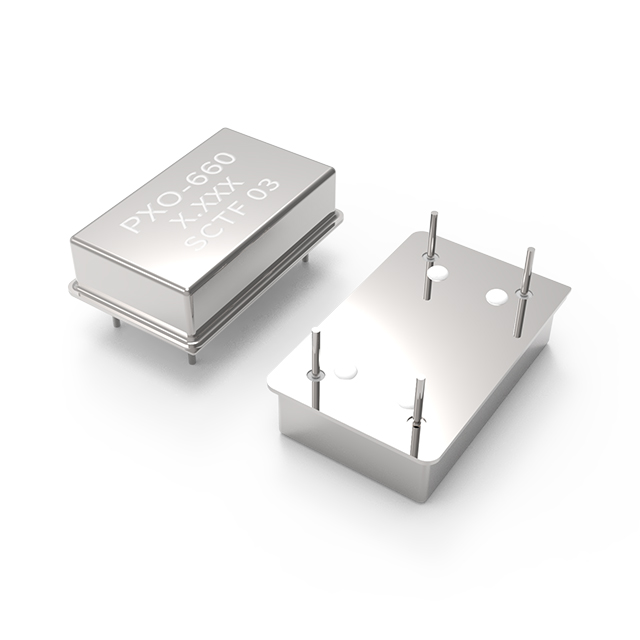

The SXOB8.192A20F30TNN is a standard CMOS crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a frequency of 8.192 MHz and utilizes an 8-DIP package with four leads, specifically designed as a half-size metal can configuration. The device supports a supply voltage of 5V and includes integrated enable and disable functionality for power management control.

Oscillators Feature Summary

• CMOS output signal generation
• Integrated enable and disable control
• Half-size metal can packaging

Oscillators Applications

• General electronic circuit timing
• Digital system clock sources
• Embedded hardware development

Oscillators Procurement Notes

Verify the component against official manufacturer specifications to ensure authenticity. Confirm that the part number matches exactly, including all suffixes, as variations may exist. Check the physical package type and lead configuration upon receipt to validate compliance with the standard 8-DIP half-size metal can form factor.

Oscillators Selection Notes

Select this component when a precise 8.192 MHz clock source is required in a compact footprint. The 5V supply requirement and CMOS output compatibility should align with the target circuit design. Consider the enable/disable feature if power efficiency during idle states is a priority for the application.

Oscillators Part Context

This oscillator belongs to the standard XO series from Shenzhen SCTF Electronics. It is characterized by its specific half-size metal can construction, which distinguishes it from larger DIP packages while maintaining robust shielding properties typical of hermetic or semi-hermetic oscillator designs.

Oscillators Replacement Considerations

No public substitute part numbers are documented.
