SXT22417DC07-24.576M

Crystals Overview

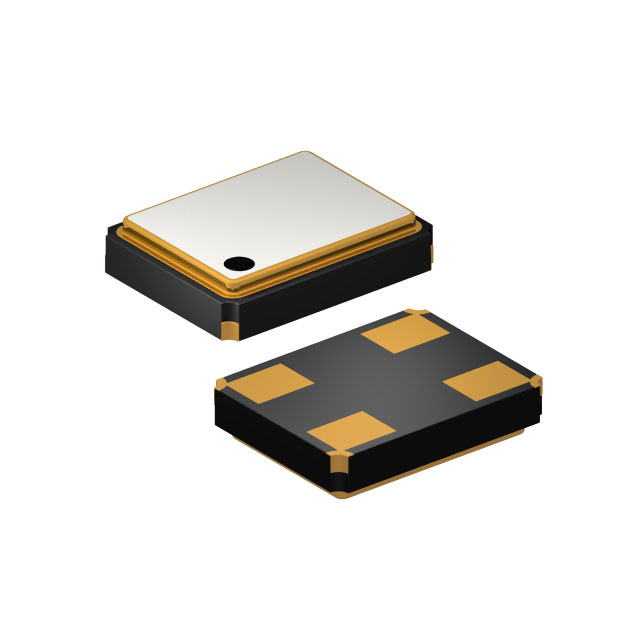

The SXT22417DC07-24.576M is a surface-mount crystal oscillator manufactured by Suntsu Electronics, Inc. It operates at a fundamental frequency of 24.576 MHz with a load capacitance of 17 pF and an equivalent series resistance of 80 Ohms. The component features a tolerance of ±20 ppm and is housed in a 4-SMD, No Lead package.

Crystals Feature Summary

• Provides precise frequency stability for timing applications
• Designed for surface-mount integration
• Operates within standard commercial temperature ranges

Crystals Applications

• Clock generation circuits
• Microcontroller systems
• Communication modules

Crystals Procurement Notes

Verify the specific ordering suffix to ensure the correct frequency and tolerance match the design requirements. Confirm the package type and lead-free status align with assembly processes. Check datasheet specifications for storage conditions and soldering profiles to maintain component integrity during manufacturing.

Crystals Selection Notes

Select this component when a 24.576 MHz reference signal is required with ±20 ppm accuracy. Ensure the circuit design supports a 17 pF load capacitance. Verify that the 4-SMD footprint fits the PCB layout constraints and that the operating temperature range meets environmental demands.

Crystals Part Context

This part belongs to the SXT22417 series of surface-mount crystals from Suntsu Electronics. The series offers various frequencies and tolerances for general-purpose timing needs. The DC07 suffix typically denotes specific packaging or handling characteristics within this product line.

Crystals Replacement Considerations

Direct substitutes include other 24.576 MHz crystals with identical 17 pF load capacitance and 4-SMD no-lead packages. Verify electrical parameters such as ESR and frequency tolerance before substitution to ensure circuit compatibility.
