SXTF321532768D20F

Crystals Overview

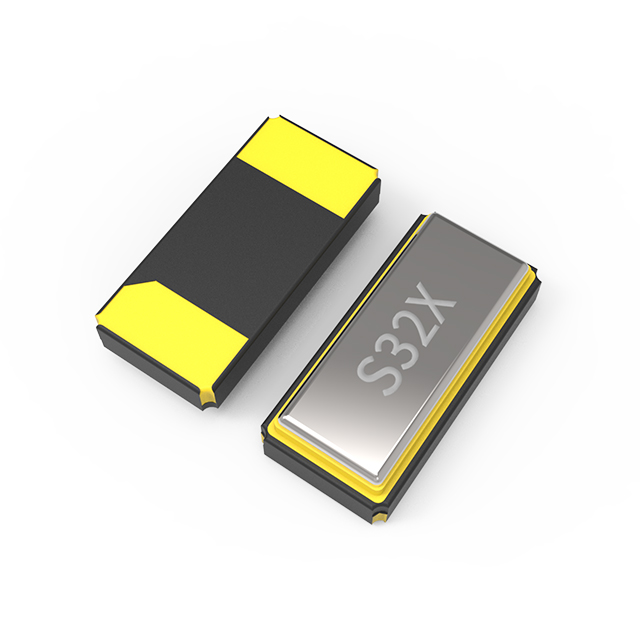

The SXTF321532768D20F is a quartz crystal resonator manufactured by Shenzhen SCTF Electronics. It operates at a fundamental frequency of 32.768 kHz, which is standard for real-time clock applications. The component features a load capacitance of 20 pF and an equivalent series resistance (ESR) limit of 90 kOhms. It utilizes a surface-mount package with dimensions of 3.2 mm in length and 1.5 mm in width. The device provides high stability and reliability for timing circuits.

Crystals Feature Summary

• Provides precise timing signals for digital systems
• Designed for low-power consumption applications
• Ensures stable oscillation under varying conditions

Crystals Applications

• Real-time clock circuits
• Microcontroller system clocks
• Smart camera timing modules

Crystals Procurement Notes

Verify the specific ordering suffix against the official datasheet to ensure correct load capacitance and tolerance specifications. Confirm that the package type matches the design requirements. Check for RoHS compliance documentation if required by the project standards. Ensure the supplier provides traceable batch records for quality assurance purposes.

Crystals Selection Notes

Select this component when a 32.768 kHz reference frequency is required for timekeeping functions. Consider the 20 pF load capacitance compatibility with the oscillator circuit design. Evaluate the ESR limits to ensure proper startup conditions are met within the target application environment.

Crystals Part Context

Shenzhen SCTF Electronics specializes in manufacturing quartz resonators and oscillators for various electronic sectors. This part belongs to their line of surface-mount crystals designed for consumer electronics and industrial applications. The company emphasizes high reliability and consistent quality across its product range.

Crystals Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout and electrical parameters before considering any alternative components from other manufacturers.
