SYBP-2250+

Overview

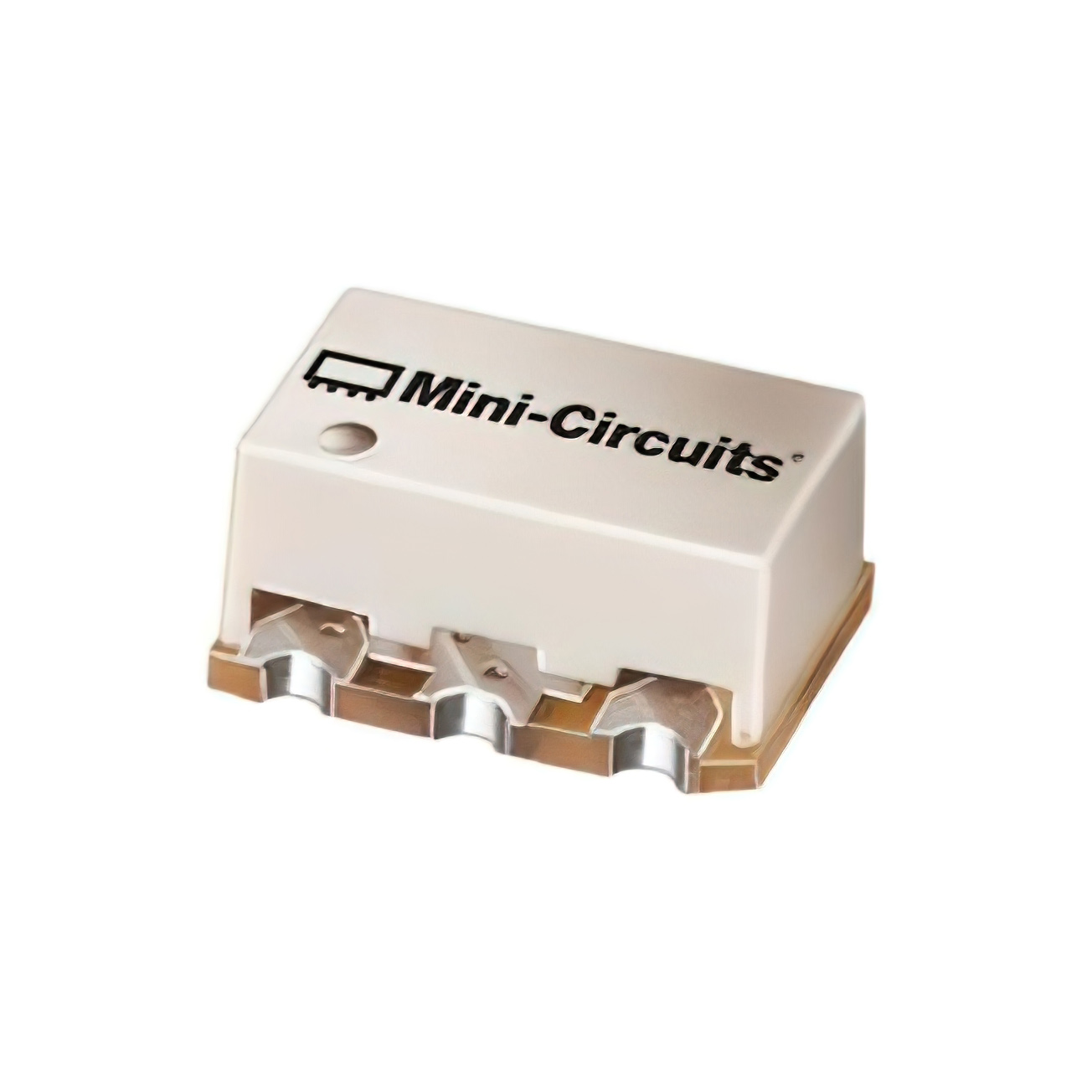

The SYBP-2250+ is a surface-mount cavity bandpass filter manufactured by Mini-Circuits. It operates within a frequency range of 1880 MHz to 2620 MHz, providing a center frequency of approximately 2250 MHz. The component features a 50 Ohm impedance and is designed for high power handling capabilities up to 7W. It utilizes a 6-SMD, no-lead package suitable for automated assembly processes. The device maintains operational stability across a temperature range of -40°C to +85°C.

Feature Summary

• High power handling capability for robust signal transmission
• Surface-mount design for compact circuit integration
• Wide bandwidth operation covering 1880 MHz to 2620 MHz

Applications

• Military radio systems
• RF signal conditioning circuits
• Microwave communication infrastructure

Procurement Notes

Verify the specific part number suffix against official Mini-Circuits documentation to ensure correct specifications. Confirm that the required operating temperature range and power handling ratings align with your system design constraints before procurement.

Selection Notes

Select this component when a wide-band cavity filter is required for high-power RF applications. Ensure the PCB layout supports the 6-SMD package dimensions and thermal requirements for continuous operation at elevated temperatures.

Part Context

This component belongs to the SYBP series of surface-mount bandpass filters from Mini-Circuits. These filters are engineered for microwave frequencies and offer a balance between performance and physical footprint, suitable for modern electronic designs requiring reliable signal filtering.

Replacement Considerations

Consult Mini-Circuits official substitution guides for verified alternatives. Generic cross-references may not match the specific power handling or bandwidth characteristics of the original cavity design.
