SYBP-92+

Overview

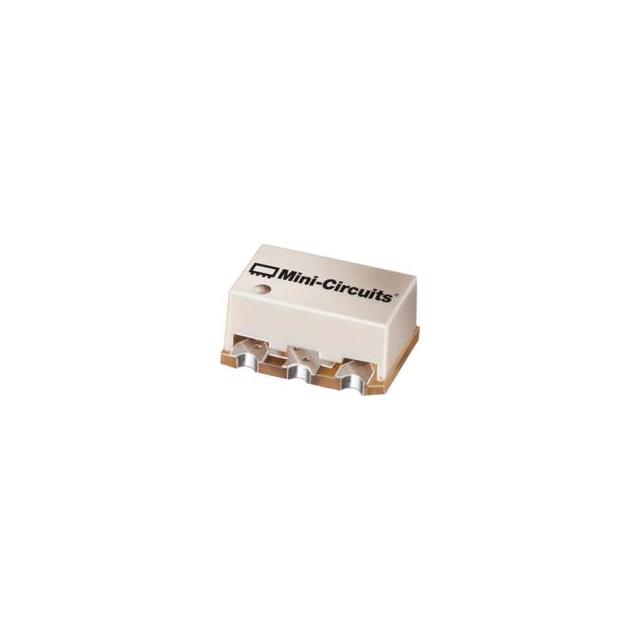

The SYBP-92+ is a surface-mount bandpass filter manufactured by Mini-Circuits, designed for radio frequency applications. It operates within an 800 MHz to 1000 MHz passband range with a center frequency of 900 MHz and a bandwidth of 200 MHz. The component features a 50Ω impedance and utilizes a 6-SMD, no-lead package measuring 7.8 x 6.3 mm. Key electrical specifications include an insertion loss of 1.9 dB to 2.8 dB and a voltage standing wave ratio (VSWR) of 1.5:1. It supports a power handling capacity of 7 W and functions reliably across a temperature range of -40°C to +85°C.

Feature Summary

• Provides high power handling capability of 7W for robust RF signal processing
• Utilizes a compact surface-mount SMD package for efficient PCB integration
• Delivers excellent out-of-band rejection characteristics for interference suppression

Applications

• Wireless communication systems requiring 800-1000 MHz filtering
• RF front-end modules in transceivers
• Test and measurement equipment operating in the specified frequency range

Procurement Notes

Verify the exact datasheet version from Mini-Circuits before procurement, as specifications may vary between revisions. Confirm that the 6-SMD no-lead package dimensions align with your PCB footprint design. Ensure thermal management strategies accommodate the 7W power handling rating within the -40°C to +85°C operational range. Cross-reference part numbers to distinguish between standard and specialized variants if applicable.

Selection Notes

Select the SYBP-92+ when a wide 200MHz bandwidth is required alongside high power tolerance in a small form factor. Consider this component for designs prioritizing low insertion loss and strict VSWR limits. Evaluate the surface-mount technology compatibility against existing assembly processes. Compare performance metrics against alternative filters if tighter rejection or different impedance matching is necessary for the specific application environment.

Part Context

This component belongs to the Mini-Circuits SYBP series of surface-mount bandpass filters. These filters are engineered for general-purpose RF applications where size constraints and power handling are critical. The series typically offers consistent performance across various frequency bands, providing designers with standardized solutions for signal conditioning and noise reduction in modern electronic devices.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Mini-Circuits official resources for direct equivalents or functional alternatives that match the 800-1000 MHz passband and 7W power handling requirements.
