SZ1608G331TF

Overview

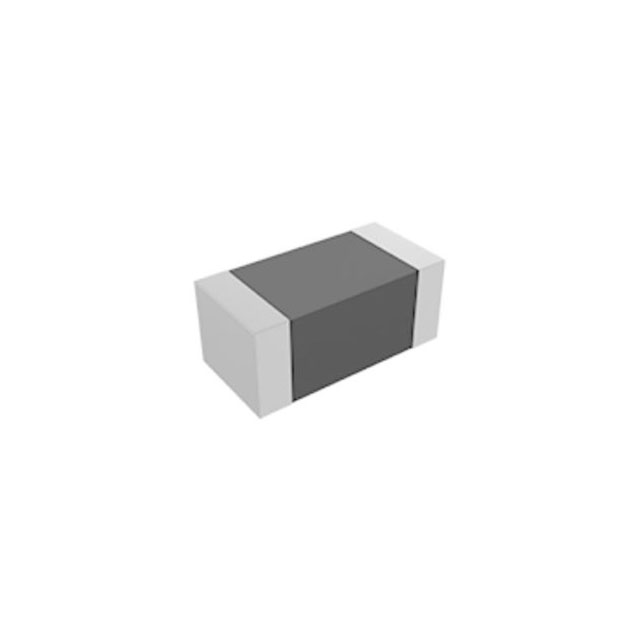

SZ1608G331TF is a surface-mount multi-layer chip ferrite bead manufactured by Shenzhen Sunlord Electronics Co., Ltd. It belongs to the SZ series and utilizes a 0603 (1608 metric) package format. The component functions as an electromagnetic interference filter with a rated impedance of 330 ohms at 100 MHz. It is designed for high-frequency noise suppression in compact electronic circuits.

Feature Summary

• Multi-layer ceramic construction for robust surface-mount integration
• High impedance characteristic effective for broadband noise attenuation
• Compact 0603 footprint suitable for dense PCB layouts

Applications

• High-speed data line filtering
• Power supply noise suppression
• Clock signal conditioning

Procurement Notes

Verify the specific impedance tolerance and DC resistance values against the official Sunlord datasheet before finalizing design integration. Confirm RoHS compliance status and lead time requirements directly with authorized distributors or the manufacturer, as these parameters are critical for production scheduling and regulatory adherence.

Selection Notes

Select this component when a 330-ohm impedance at 100 MHz is required within a 0603 package. Ensure the operating current does not exceed the maximum rating specified in the electrical characteristics table. Compare thermal performance and saturation current against alternative ferrite beads if space constraints allow for larger packages.

Part Context

This part is part of the SZ series from Shenzhen Sunlord Electronics, a manufacturer specializing in passive magnetic components. The series targets applications in telecommunications, consumer electronics, and industrial equipment where reliable EMI suppression is necessary. Sunlord produces these components using advanced multi-layer ceramic technology.

Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation. Evaluate cross-references based on identical impedance, package size, and current ratings only after verifying technical compatibility with the original specification sheet.
