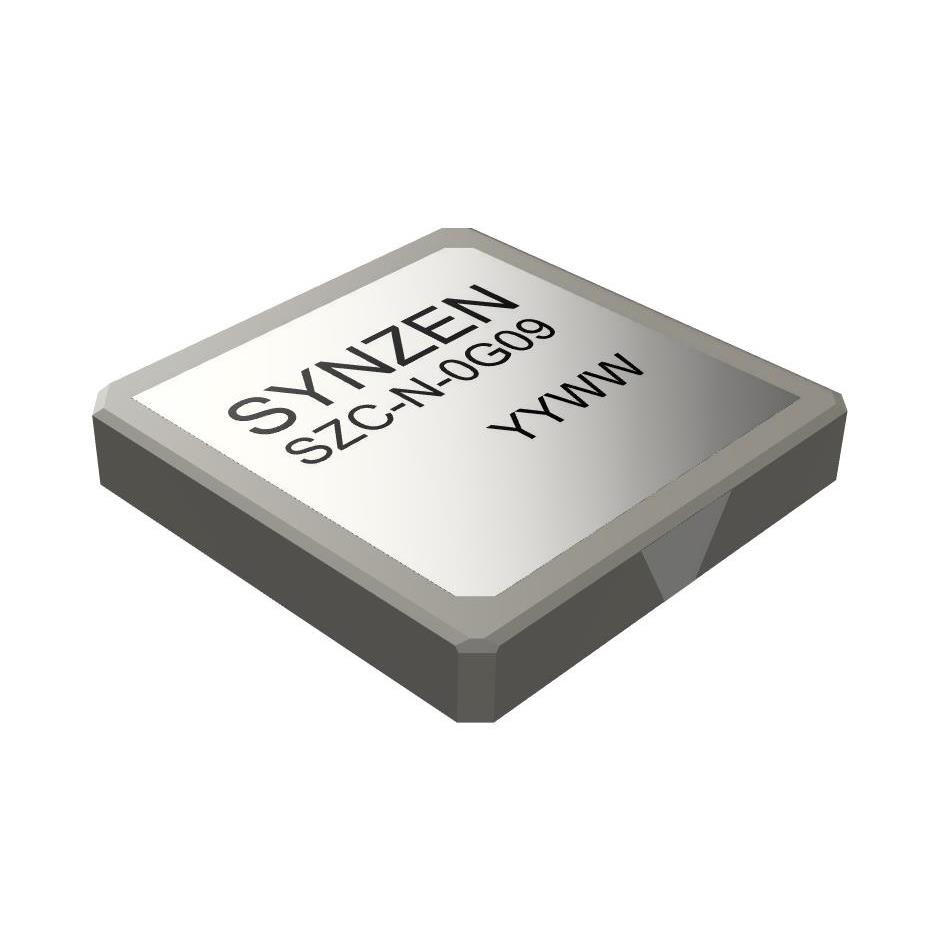

SZC-N-0G09 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is RF ANT 1.575/1.602GHZ CER PATCH. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for SZC-N-0G09
- Description：RF ANT 1.575/1.602GHZ CER PATCH
- Series：ARIETISd
- Mfr：Synzen
- Package：Bag
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.575GHz, 1.602GHz
- Frequency Range：1.572GHz ~ 1.578GHz, 1.597GHz ~ 1.607GHz
- Antenna Type：Ceramic Patch
- Number of Bands：1
- VSWR：1.3, 4.8
- Return Loss：-17dB
- Gain：4dBi, 2.2dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.157" (4.00mm)
- Applications：Galileo, GLONASS, GNSS, GPS
- Power - Max：-
Antennas RF datasheet and documents for SZC-N-0G09
Antennas RF Overview
The SZC-N-0G09 is a ceramic patch antenna manufactured by Synzen, designed for Global Navigation Satellite Systems (GNSS). It operates at frequencies of 1.575 GHz and 1.602 GHz, supporting GPS L1, Galileo, GLONASS, and other GNSS signals. The component utilizes a surface-mount technology (SMD) package with dimensions of 25x25x4 mm. It features an Arietis d design optimized for L1 band reception. The unit is rated for an operating temperature range of -40°C to +85°C.
Antennas RF Feature Summary
- Supports multiple GNSS constellations including GPS, Galileo, and GLONASS
- Utilizes a compact ceramic patch construction for surface mounting
- Engineered with Arietis d technology for enhanced signal performance
Antennas RF Applications
- Global Navigation Satellite System receivers
- GPS L1 positioning modules
- Galileo and GLONASS compatible navigation devices
- Evaluation boards requiring integrated GNSS connectivity
Antennas RF Procurement Notes
Verify the specific revision number against the official Synzen datasheet to ensure compatibility with current production standards. Confirm that the required frequency bands align precisely with your system's operational requirements before finalizing procurement decisions.
Antennas RF Selection Notes
Select this component when a low-profile surface-mount solution is required for multi-constellation GNSS applications. Ensure the host PCB layout accommodates the 25x25mm footprint and verify thermal management capabilities within the specified -40°C to +85°C operating range.
Antennas RF Part Context
This model belongs to Synzen's Arietis d series of GNSS antennas. It is often paired with evaluation kits such as the SZDV-N-0G09, which provides a development platform featuring the antenna fitted with an SMA connector for testing purposes.
Antennas RF Replacement Considerations
The SZC-N-0G08 serves as a related dual-band alternative from Synzen. Verify dimensional compatibility and interface specifications before considering substitution.
