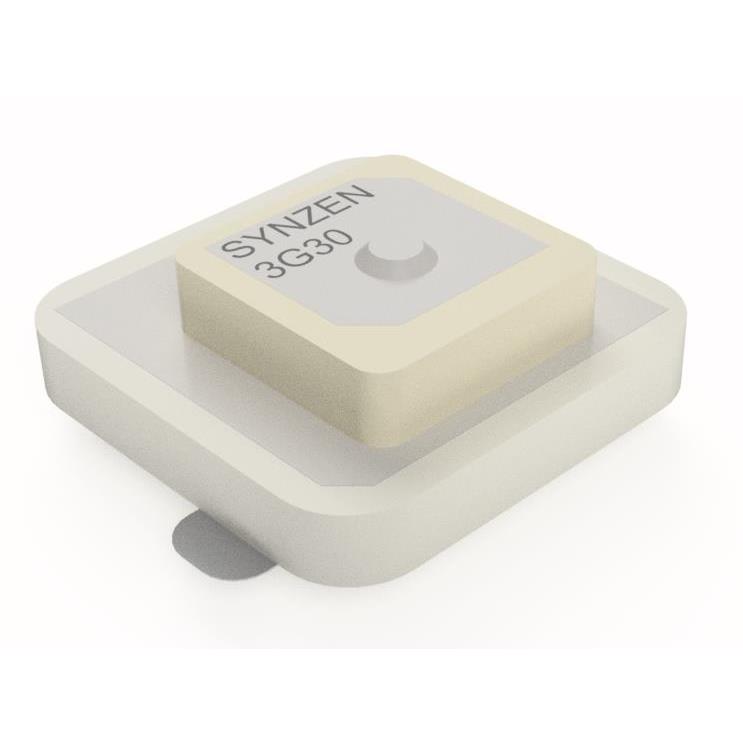

SZC-N-3G30 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is 1.176GHz, 1.5808GHz Beidou, Gali. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for SZC-N-3G30
- Description：1.176GHz, 1.5808GHz Beidou, Gali
- Series：-
- Mfr：Synzen
- Package：Tray
- RF Family/Standard：Navigation
- Frequency Group：Wide Band
- Frequency (Center/Band)：1.176GHz, 1.5808GHz
- Frequency Range：1.17GHz ~ 1.183GHz, 1.5531GHz ~ 1.6086GHz
- Antenna Type：Ceramic Patch
- Number of Bands：2
- VSWR：2, 2.2
- Return Loss：-10dB
- Gain：2.5dBi, 3.5dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Through Hole
- Height (Max)：0.315" (8.00mm)
- Applications：Galileo, GNSS, GPS
- Power - Max：-
