SZK-C-0G04

Antennas RF Overview

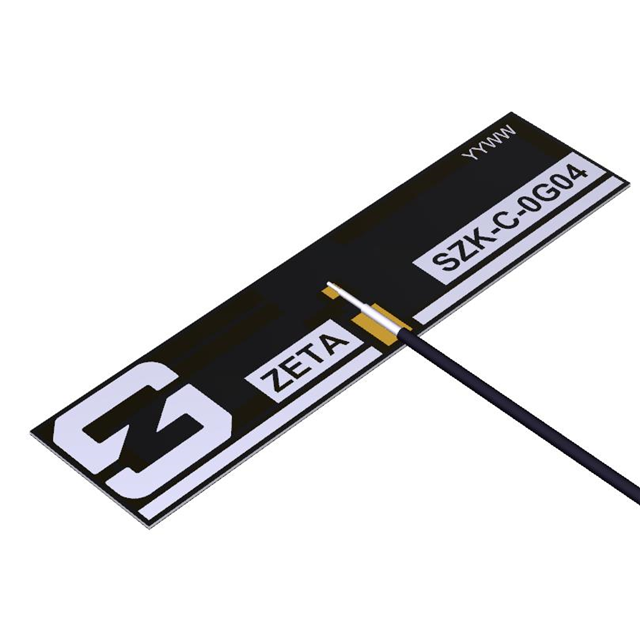

The SZK-C-0G04 is a GNSS flat patch antenna manufactured by Synzen, designed for Global Navigation Satellite System applications. It features an IPEX connector interface and utilizes a flexible printed circuit (FPC) form factor with dimensions of 40 x 10 x 0.2 mm. The component operates within standard GNSS frequency bands to support positioning and navigation functions in compact electronic devices.

Antennas RF Feature Summary

• Flexible printed circuit construction suitable for internal device integration
• Flat patch design optimized for GNSS signal reception
• IPEX connector interface for direct board connection

Antennas RF Applications

• GNSS positioning modules
• Navigation systems
• Compact electronic devices requiring internal antenna solutions

Antennas RF Procurement Notes

Verify the specific datasheet revision and RoHS3 compliance status prior to procurement. Confirm that the IPEX connector type matches the target PCB footprint. Ensure environmental ratings align with the intended operating conditions. Cross-reference the part number with official Synzen documentation to avoid substitution errors.

Antennas RF Selection Notes

Select this component when a low-profile, flexible antenna is required for GNSS applications. The small footprint suits space-constrained designs. Evaluate the trade-off between the FPC flexibility and mechanical durability against rigid alternatives. Ensure the IPEX connector compatibility with the system's RF front-end.

Antennas RF Part Context

This model belongs to Synzen's portfolio of RF antennas, specifically focusing on GNSS solutions. It complements other Synzen products like the SZK-C-0L05 5G antenna and SZK-C-0W03 WLAN antenna, offering specialized coverage for satellite navigation rather than cellular or wireless local area network frequencies.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Verify compatibility with existing RF circuits if considering alternative GNSS antennas from different manufacturers.
