SZK-C-0L04 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is 4G LTE ANT FLAT PATCH IPEX. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for SZK-C-0L04
- Description：4G LTE ANT FLAT PATCH IPEX
- Series：LALANDE
- Mfr：Synzen
- Package：Bulk
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：829MHz, 1.94GHz, 2.35GHz, 2.595GHz
- Frequency Range：698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
- Antenna Type：Flat Patch
- Number of Bands：5
- VSWR：2.3, 2.6, 2.9, 3.5
- Return Loss：-6dB, -11.3dB, -11.4dB, -13.8dB
- Gain：2.3dBi, 2.6dBi, 2.9dBi, 3.5dBi
- Features：-
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.008" (0.20mm)
- Applications：3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA
- Power - Max：-
Antennas RF datasheet and documents for SZK-C-0L04
Antennas RF Overview

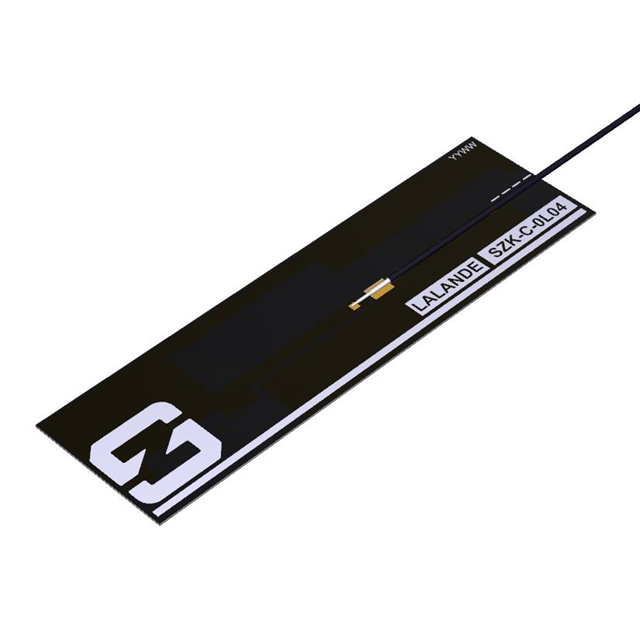

The Synzen SZK-C-0L04 is a flexible printed circuit (FPC) antenna designed for cellular communication applications. It supports multiple frequency bands including GSM, GPRS, EDGE, CDMA, DCS, and 3G/4G LTE. The component features peak gain values ranging from 2.3 dBi to 3.5 dBi across its operational spectrum. The center frequencies cover 829 MHz and 2.595 GHz. The physical dimensions are specified as 69 mm by 20 mm with a thickness of 0.2 mm.
Antennas RF Feature Summary
- Flexible FPC construction suitable for internal device embedding
- Multi-band support for cellular standards including 3G and 4G LTE
- Compact form factor optimized for space-constrained designs
Antennas RF Applications
- Internal integration in mobile handsets
- Embedded use in IoT cellular modules
- Wireless communication devices requiring compact antennas
Antennas RF Procurement Notes
Verify the specific datasheet version to confirm exact electrical parameters and mechanical tolerances. Ensure compatibility with the target device's internal layout and material constraints. Cross-reference the manufacturer's official documentation for precise impedance matching requirements and mounting guidelines before finalizing procurement decisions.
Antennas RF Selection Notes
Select this model when multi-band cellular coverage is required within strict spatial limitations. The flexible substrate allows for adaptation to non-planar surfaces inside enclosures. Evaluate the trade-off between the compact footprint and the specified gain levels to ensure adequate signal performance for the intended application environment.
Antennas RF Part Context
This component belongs to Synzen's LALANDE series of embedded antenna solutions. It represents a standard solution for wireless communications internal to devices. The product line focuses on providing reliable RF connectivity through SMD mounted or FPC formats tailored for modern consumer electronics and industrial applications.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided data. Verify if alternative models within the same series offer compatible interface specifications and dimensional constraints before considering substitution options.
