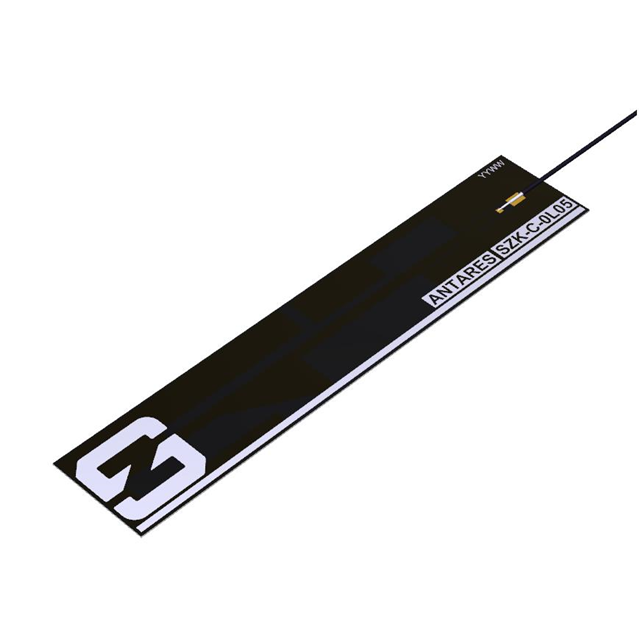

SZK-C-0L05 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is 5G ANT PCB TRACE IPEX. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for SZK-C-0L05
- Description：5G ANT PCB TRACE IPEX
- Series：ANTARES
- Mfr：Synzen
- Package：Bulk
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：657.5MHz, 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.595GHz, 3.55GHz
- Frequency Range：617MHz ~ 960MHz, 1.427GHz ~ 1.66GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz
- Antenna Type：PCB Trace
- Number of Bands：7
- VSWR：4.7, 1.52, 1.65, 1.85
- Return Loss：-4dB, -13dB, -12dB, -10dB
- Gain：3.2dBi, 3.1dBi, 3.7dBi, 4.5dBi
- Features：-
- Termination：U.FL (UMCC), I-PEX MHFII
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.008" (0.20mm)
- Applications：5G, 4G, 2G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA
- Power - Max：-
Antennas RF datasheet and documents for SZK-C-0L05
Antennas RF Overview
The SZK-C-0L05 is a 5G cellular FPC antenna by Synzen, designed for high performance in an ultra-small form factor. It supports multiple frequency bands including 5G LTE ranges of 617-960 MHz, 1427-1660 MHz, and 1710 MHz, alongside 4G, 3G, 2G, CDMA, DCS, EDGE, and GPRS standards. The component utilizes an IPEX connector interface and features a PCB trace design suitable for simple integration into compact electronic devices requiring multi-band wireless connectivity.
Antennas RF Feature Summary
- Supports comprehensive multi-band cellular connectivity including 5G, 4G, 3G, and legacy standards
- Utilizes an ultra-small flexible printed circuit (FPC) form factor for space-constrained applications
- Integrates an IPEX connector interface for direct board connection
Antennas RF Applications
- 5G mobile communication devices
- IoT modules requiring multi-band cellular support
- Compact wireless terminals
Antennas RF Procurement Notes
Verify the specific datasheet revision and exact mechanical dimensions against your design requirements before procurement. Confirm that the IPEX connector type matches your host board layout. Ensure the operating temperature range aligns with your application environment. Request official documentation to validate compliance with regional regulatory standards for the supported frequency bands.
Antennas RF Selection Notes
Select this component when a compact, multi-band cellular solution is required for 5G and legacy networks. The FPC design offers flexibility for integration into tight spaces. Consider the IPEX interface compatibility during the initial hardware design phase. This antenna is suitable for applications prioritizing size reduction without compromising broad spectrum coverage capabilities.
Antennas RF Part Context
The SZK-C-0L05 belongs to Synzen's ANTARES series of RF antennas. This series focuses on delivering high-performance wireless connectivity within minimal physical footprints. The product line targets modern mobile and IoT devices where space efficiency and multi-standard support are critical design constraints.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult Synzen directly for alternative models or cross-reference options based on specific frequency and form factor requirements.
